Field-attachable Straight Female JIC/SAE Dual Seat Swivel

Field-attachable 45° Tube Female JIC/SAE Dual Seat Swivel

Field-attachable 90° Tube Female JIC/SAE Dual Seat Swivel

Field-attachable Straight Female JIC Swivel

Field-attachable 45° Tube Female JIC Swivel

Field-attachable 90° Tube Female JIC Swivel

Field-attachable Straight Female SAE Swivel

Field-attachable 45° Tube Female SAE Swivel

Field-attachable 90° Tube Female SAE Swivel

Field-attachable Straight Male SAE Inverted Flare

Field-attachable 45° Tube Male SAE Inverted Flare

Field-attachable 90° Tube Male SAE Inverted Flare

Field-attachable Straight Male NPTF

Field-attachable Straight Female JIC/SAE Dual Seat Swivel

Field-attachable 45° Tube Female JIC/SAE Dual Seat Swivel

Field-attachable 90° Tube Female JIC/SAE Dual Seat Swivel

Field-attachable Straight Female JIC Swivel

Field-attachable 45° Tube Female JIC Swivel

Field-attachable 90° Tube Female JIC Swivel

Field-attachable Straight Female SAE Swivel

Field-attachable 45° Tube Female SAE Swivel

Field-attachable 90° Tube Female SAE Swivel

Ultra High Pressure

Meets Flame Resistance Acceptance Designation MSHA 2G

Recommended For: High impulse applications such as hydrostatic transmissions for use in the construction, agriculture, forestry, underground or open pit mining, or other industries or applications where extremely high pressure capability is required.

Tube: Black, oil resistant, Polychloroprene.

Temperature Range: -40°C to +121°C.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Extremely High Pressure

4 & 6 Spiral Wire Hose (S.A.E. 100R15)

Recommended For: Extremely high pressure, high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet all requirements of SAE 100R15 specifications & performance requirements of EN856 4SP (-6,-8,-10 & -12) and EN856 4SH (-12,-16,-20 & -24) Meets flame resistance acceptance designation "MSHA 2G"

Revolutionary Design: Makes designing & plumbing of extremely high pressure hydraulic systems easy & efficient. 5/8" to 1-1/2" sizes are available in 36m & 60m continuous lengths.

Tube: Black, oil resistant, synthetic rubber. (Nitrile-Type C).

Reinforcement: Four (six for -20 & -24) alternating layers of spiralled, high-tensile steel.

Cover: Black, oil resistant, synthetic rubber. (Neoprene-Type A).With colour coded layline. Available with unique abrasion-resistant MegaTuff® cover. MegaTuff® hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion test per ISO 6945

Temperature Range: 40°C to + 121°C

Couplings: Global-Crimp series

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Extremely High Pressure 4 & 6 Spiral Wire Hose (S.A.E. 100R13)

Recommended For: Extremely high pressure hydraulic applications.

Standards: EFG5K is designed to meet all requirements of SAE 100R 13 specifications and performance requirements of EN856 4SH (-16, -20, -24 and -32) and EN 856 4SP (-8, -10 and -12) and EN 856 R13. 1/2" to 2" sizes are available in 36m to 61m continuous lengths. Meets flame resistance acceptance designation MSHA 2G. Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum-based fluids.

Tube: Black, oil resistant, synthetic rubber. (Size 06 to 20 Nitrile - Type C, sizes 24 & 32 Neoprene - Type A).

Reinforcement: Four (Six for 20, -24 and -32) layers of alternated, spiralled, high tensile steel wire.

Cover: Black, oil resistant synthetic rubber (Neoprene-Type A). With colour coded layline. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.

Temperature Range: -40°F to + 250°F (-40°C it +121°C).

Couplings: Global-Crimp series.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Extremely High Pressure 4 Spiral Wire Hose (S.A.E 100R12)

Recommended For: Extremely high pressure, high impulse applications. Exceeds all performance requirements for SAE 100R12, EN 856 4SP (-16). Meets flame resistance acceptance designation "MSHA 2G" Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum based fluids. Available in 36 through 60 metre lengths.

Tube: Black, oil resistant, synthetic rubber. (neoprene Type C).

Reinforcement: Four alternating layers of spiralled, high-tensile steel.

Cover: Black, oil resistant, synthetic rubber. (Neoprene Type A). With colour coded layline. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.

Temperature Range: -40°F to 250°F (-40 C to +121 C).

Couplings: Super-Crimp and Global-Crimp series.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Extremely High Pressure 4 Spiral Wire Hose (S.A.E 100R12)

Recommended For: Extremely high pressure, high impulse applications. Exceeds all performance requirements for SAE 100R12, EN 856 4SP. Meets flame resistance acceptance designation "MSHA 2G" Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum based fluids. Available in 36 through 60 metre lengths.

Tube: Black, oil resistant, synthetic rubber. (Nitrile - Type C).

Reinforcement: Four alternating layers of spiralled, high-tensile steel.

Cover: Black, oil resistant, synthetic rubber. (Neoprene Type A). With colour coded layline. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.

Temperature Range: -40°F to +250°F (-40°C to +121°C).

Couplings: Global-Crimp and GSP Series.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended For: High pressure hydraulic applications. Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing. Meets flame resistance acceptance designation "MSHA 2G" Tube: Black, oil-resistant, synthetic rubber (Nitrile- Type C).

Reinforcement: Two braids of high tensile steel wire.

Cover: Black, oil, abrasion and weather resistant, synthetic rubber (Modified Nitrile- Type C ). XtraTuff® hose lasts up to 25 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests.

Temperature Range: -40°F to +212°F (-40 C to +100 C).

Couplings: Gates Mega-Crimp series.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended For: High pressure hydraulic applications. Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing. Meets flame resistance acceptance designation "MSHA 2G" Tube: Black, oil-resistant, synthetic rubber (Nitrile- Type C).

Reinforcement: Two braids of high tensile steel wire.

Cover: Black, oil, abrasion and weather resistant, synthetic rubber (Modified Nitrile- Type C ). Available with unique abrasion resistant MegaTuff® cover. XtraTuff® hose lasts up to 25 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests.

Temperature Range: -40°F to +212°F (-40°C to +100°C)

Couplings: Super-Crimp, Global-Crimp and Mega-Crimp series

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended For: High pressure hydraulic oil lines. MR1 and 100R2 hose. Meets flame resistance acceptance designation MSHA 2G

Tube: Black, oil, abrasion and weather resistant, synthetic rubber. (Modified Nitrile-Type C ).

Reinforcement: Braided high tensile steel wire. -4, -6 and -8 sizes are one braid; -10, -12 and -16 sizes are two-braid.

Cover: Black, oil, abrasion and weather resistant, synthetic rubber. (Modified Nitrile-Type C ). XtraTuff® hose lasts up to 25 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests.

Temperature Range: -40°F to +212°F (-40°C to +100°C).

Couplings: Super-Crimp, Ezi-Crimp and Gates Mega-Crimp series.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended For: High pressure hydraulic oil lines. Exceeds SAE 100R16 Requirements and meets or exceeds EN 853 2SN. M2T hose has smaller exterior dimensions and significantly tighter bend radius. Meets flame resistance acceptance designation MSHA 2G

Tube: Black, oil-resistant, synthetic rubber. (Nitrile- Type C).

Reinforcement: Two braids, of high tensile steel wire.

Cover: Black, oil, abrasion and weather resistant, synthetic rubber. ( Modified Nitrile- Type C ). With colour coded layline. XtraTuff® hose lasts up to 25 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests.

Temperature Range: -40°F to +212°F (-40°C to +100°C).

Couplings: Super-Crimp, Ezi-Crimp and Gates Mega-Crimp series

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended For: High pressure hydraulic oil lines such as forklift applications. Exceeds SAE100R16 requirements and meets or exceeds performance standards of EN 857 2SC and ISO/DIS 1436 CM2T hose has a smaller exterior dimensions and significantly tighter bend radius. Meets flame resistance acceptance designation MSHA 2G

Tube: Black oil resistant, synthetic rubber (Nitrile-Type C).

Reinforcement: Two braids, of high - tensile steel wire.

Cover: Black oil, abrasion and weather resistant, synthetic rubber (Modified Nitrile- Type C )

Temperature Range: -40°F to +212°F (-40°C to +100°C).

Couplings: Super-Crimp, Ezi-Crimp and Gates Mega-Crimp series.

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended for: High pressure hydraulic applications requiring a premium compact, lightweight hose with spiral performance and flexibility.

Standards: Meets all criteria of ISO 18752 and SAE 100R19. Meets performance criteria of SAE 100R12, EN 856 R12 and ISO 3862 R12. Size -16 also exceeds EN 856 4SP performance requirements.

Tube: Black, oil resistant, synthetic rubber.

Reinforcement: Two layers of braided high-tensile steel wire.

Cover: Black, XtraTuff™ Plus abrasion resistant, ozone resistant, synthetic rubber; smooth cover.

Temperature Range: -40°F to +250°F (-40°C to +121°C)

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended for: High pressure hydraulic oil lines. Meets SAE 100R16 and 100R17* dimension and performance. Meets SAE 100R2 and SAE 100R19* performance. Meets EN 853 2SN and EN 857 2SC performance. *Applies only to size up to and including -12 for SAE 100R17 and -8 for SAE 100R19

Tube: Black,oil resistant, synthetic rubber (Nitrile, PVC)

Reinforcement: One braid of high-tensile steel wire.

Cover: Black, oil, abrasion and weather- resistant synthetic rubber (Nitrile) with colour coded layline.

Temperature Range: -40°F to +212°F (-40°C to +100°C)

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

Recommended For: High pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2AT and SAE 100R2 Type S and performance requirements of EN 853 2SN. Meets flame resistance acceptance designation MSHA 2G

Tube: Black oil resistant, synthetic rubber (Nitrile-Type C).

Reinforcement: Two braids, of high - tensile steel wire.

Cover: Black, oil and abrasion resistant thin synthetic rubber (Modified Nitrile - Type C ).

Temperature Range: -40°F to +212°F (-40°C to +100°C).

Couplings: Super-Crimp, Ezi-Crimp and Gates Mega Crimp series couplings

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

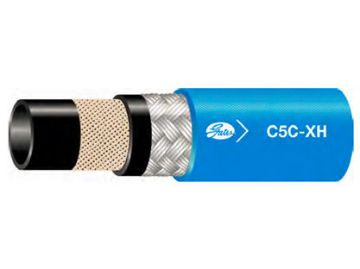

Recommended For: High -pressure hydraulics applications where pressure or temperature requirements exceed SAE 100R2AT or where resistance to either petroleum-based or phosphate ester fluids is required. Meets or exceeds the requirements of SAE 100R2 Type AT. Meets flame resistance acceptance designation MSHA 2G

Tube: Black, oil and chemical resistant, synthetic rubber (CPE)

Reinforcement: Two braids, of high - tensile steel wire.

Cover: Blue, oil and abrasion resistant thin synthetic rubber (CSM) Flame Resistant U.S MSHA 2G

Temperature Range: -40°F to +300°F (-40°C to +149°C).

Couplings: Super-Crimp, Ezi-Crimp and Gates Mega Crimp series

Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
