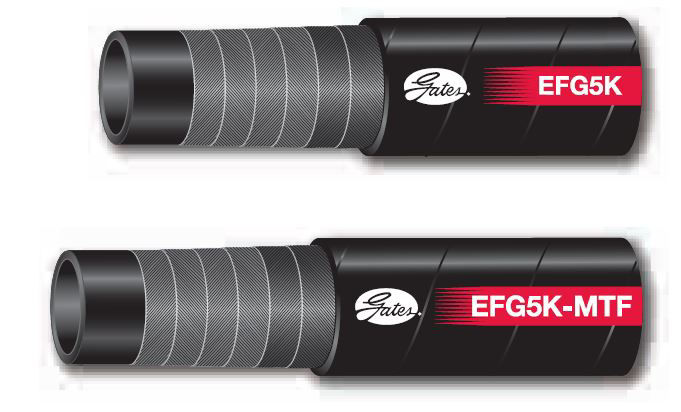

Extremely High Pressure 4 & 6 Spiral Wire Hose (S.A.E. 100R13)
Recommended For: Extremely high pressure hydraulic applications.
Standards: EFG5K is designed to meet all requirements of SAE 100R 13 specifications and performance requirements of EN856 4SH (-16, -20, -24 and -32) and EN 856 4SP (-8, -10 and -12) and EN 856 R13. 1/2" to 2" sizes are available in 36m to 61m continuous lengths. Meets flame resistance acceptance designation MSHA 2G. Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
Tube: Black, oil resistant, synthetic rubber. (Size 06 to 20 Nitrile - Type C, sizes 24 & 32 Neoprene - Type A).
Reinforcement: Four (Six for 20, -24 and -32) layers of alternated, spiralled, high tensile steel wire.
Cover: Black, oil resistant synthetic rubber (Neoprene-Type A). With colour coded layline. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.
Temperature Range: -40°F to + 250°F (-40°C it +121°C).
Couplings: Global-Crimp series.
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
