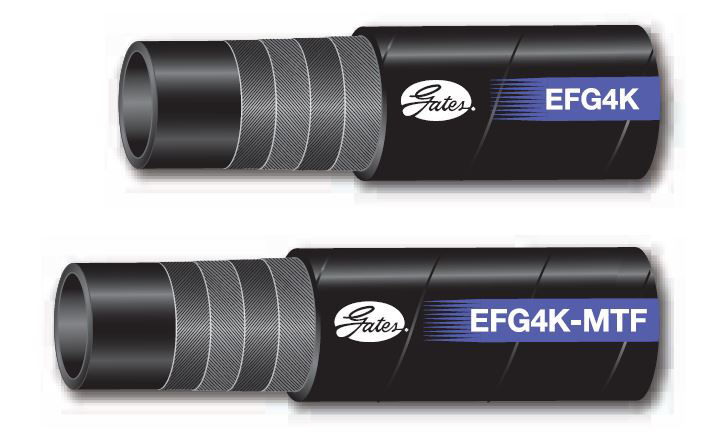

Extremely High Pressure 4 Spiral Wire Hose (S.A.E 100R12)
Recommended For: Extremely high pressure, high impulse applications. Exceeds all performance requirements for SAE 100R12, EN 856 4SP (-16). Meets flame resistance acceptance designation "MSHA 2G" Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum based fluids. Available in 36 through 60 metre lengths.
Tube: Black, oil resistant, synthetic rubber. (neoprene Type C).
Reinforcement: Four alternating layers of spiralled, high-tensile steel.
Cover: Black, oil resistant, synthetic rubber. (Neoprene Type A). With colour coded layline. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945.
Temperature Range: -40°F to 250°F (-40 C to +121 C).
Couplings: Super-Crimp and Global-Crimp series.
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
