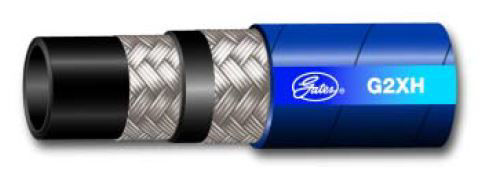

Recommended For: High -pressure hydraulics applications where pressure or temperature requirements exceed SAE 100R2AT or where resistance to either petroleum-based or phosphate ester fluids is required. Meets or exceeds the requirements of SAE 100R2 Type AT. Meets flame resistance acceptance designation MSHA 2G
Tube: Black, oil and chemical resistant, synthetic rubber (CPE)
Reinforcement: Two braids, of high - tensile steel wire.
Cover: Blue, oil and abrasion resistant thin synthetic rubber (CSM) Flame Resistant U.S MSHA 2G
Temperature Range: -40°F to +300°F (-40°C to +149°C).
Couplings: Super-Crimp, Ezi-Crimp and Gates Mega Crimp series
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
