Multi Spiral
G8K - Ultra High Pressure
Ultra High Pressure
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended For: Ultra high pressure, high impulse applications such as hydrostatic transmissions for use in the construction, agriculture, forestry, underground or open pit mining, or other industries on applications where extremely high pressure capability is required.
Tube: Black, oil resistant (Polychloroprene)
Reinforcement: Six alternating layers of high-tensile steel wire spiral construction.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene) with colour-coded layline.
Temperature Range: -40°C to +121°C.
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

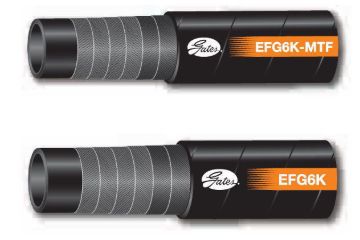

EFG6K - Extremely High Pressure
Extremely High Pressure
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended For: Extremely high pressure, high impulse applications such as hydrostatic transmissions.
Standards: EFG6K is designed to meet all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16 and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24).
Tube: Black, oil resistant, synthetic rubber (Nitrile)
Reinforcement: Four (six for -20 & -24) alternating layers of spiralled, high-tensile steel.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene). Colour-coded layline. Also available with unique abrasion-resistant MegaTuff® cover.
Temperature Range: 40°C to + 121°C
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
EFG5K - Extremely High Pressure
Extremely High Pressure
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended For: Extremely high pressure, high impulse applications.
Standards: Exceeds all requirements of ISO 18752 Grade D (except for -24) and SAE 100R13, and performance requirements of EN 856 4SH (-16 & -20), EN 856 4SP (-10 & -12), EN 856 R13 and ISO 3862 Type R13 (-12, -16, -20, -24, -32).
Tube: Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement: Four (six for -20, -24 & -32) alternating layers of spiraled, high-tensile steel wire.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene). Colour-coded layline. Also available with unique abrasion-resistant MegaTuff® cover.
Temperature Range: -40°F to + 250°F (-40°C it +121°C).
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
EFG4K - Extremely High Pressure
Extremely High Pressure
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended For: Extremely high pressure, high impulse applications.
Standards: Exceeds all requirements of ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 Type R12.
Tube: Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement: Four alternating layers of spiralled, high-tensile steel wire.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene). Colour-coded layline. Also available with unique abrasion-resistant MegaTuff® cover.
Temperature Range: -40°F to 250°F (-40 C to +121 C).
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.

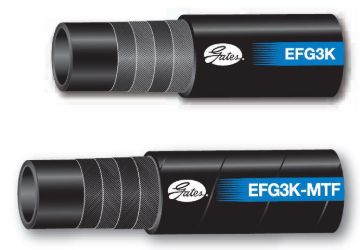

EFG3K - Extremely High Pressure
Extremely High Pressure
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended For: Extremely high pressure, high impulse applications.
Standards: Exceeds all requirements of ISO 18752 Grade D, SAE 100R12, EN 856 R12 and performance requirements of EN 856 4SP and ISO 3862 Type R12.
Tube: Black, oil resistant, synthetic rubber (Nitrile)
Reinforcement: Four alternating layers of spiralled, high-tensile steel wire.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene). Colour-coded layline. Also available with unique abrasion-resistant MegaTuff® cover.
Temperature Range: -40°F to +250°F (-40°C to +121°C).
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
