Recommended for: High pressure hydraulic applications requiring a premium compact, lightweight hose with spiral performance and flexibility.
Standards: Meets all criteria of ISO 18752 and SAE 100R19. Meets performance criteria of SAE 100R12, EN 856 R12 and ISO 3862 R12. Size -16 also exceeds EN 856 4SP performance requirements.

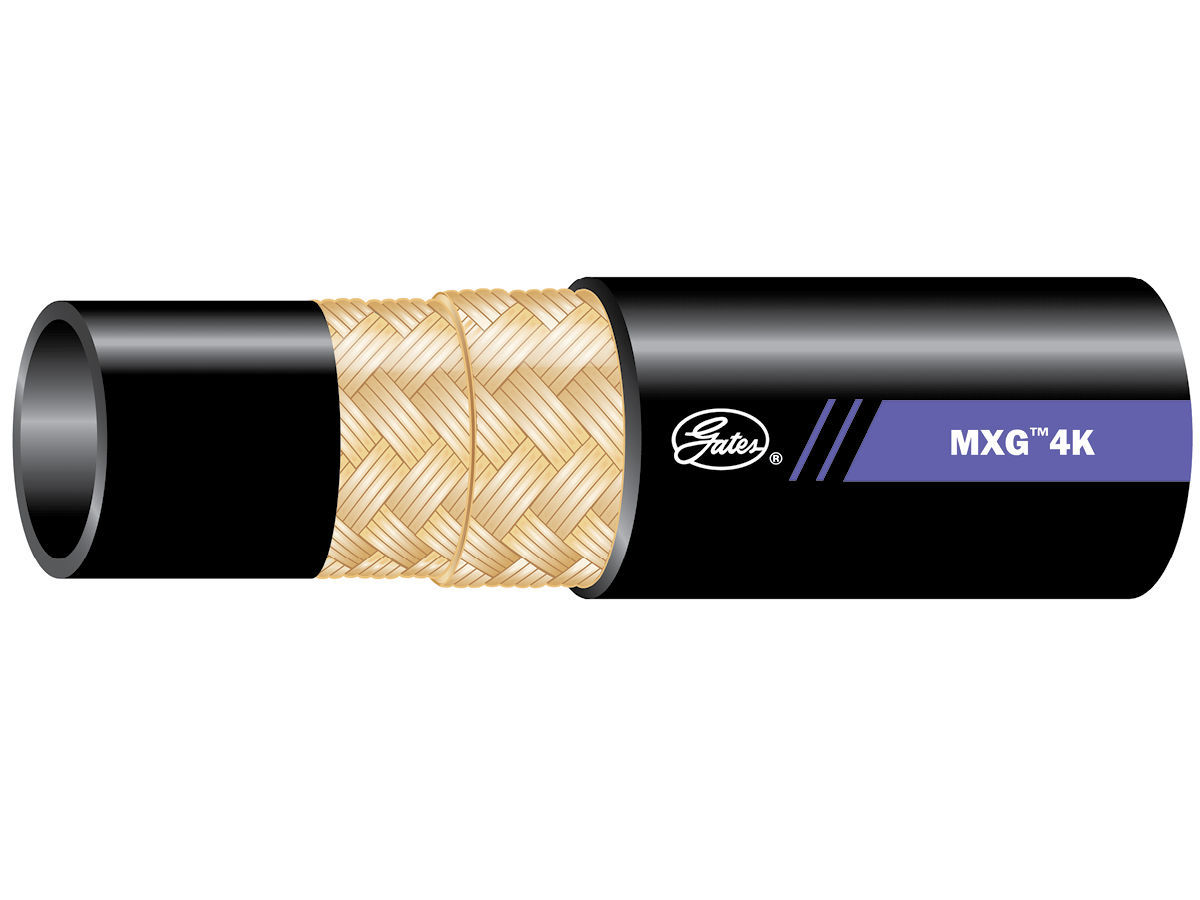

Tube: Black, oil resistant, synthetic rubber.
Reinforcement: Two layers of braided high-tensile steel wire.
Cover: Black, XtraTuff™ Plus abrasion resistant, ozone resistant, synthetic rubber; smooth cover.
Temperature Range: -40°F to +250°F (-40°C to +121°C)
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
