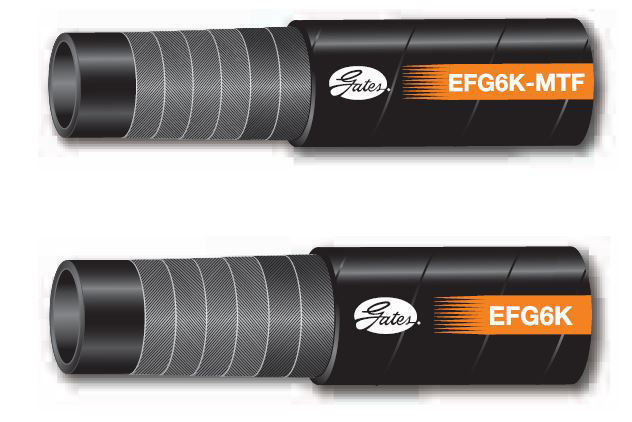

Extremely High Pressure
Meets Flame Resistance Acceptance Designation MSHA 2G
Recommended For: Extremely high pressure, high impulse applications such as hydrostatic transmissions.
Standards: EFG6K is designed to meet all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16 and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24).
Tube: Black, oil resistant, synthetic rubber (Nitrile)
Reinforcement: Four (six for -20 & -24) alternating layers of spiralled, high-tensile steel.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene). Colour-coded layline. Also available with unique abrasion-resistant MegaTuff® cover.
Temperature Range: 40°C to + 121°C
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
