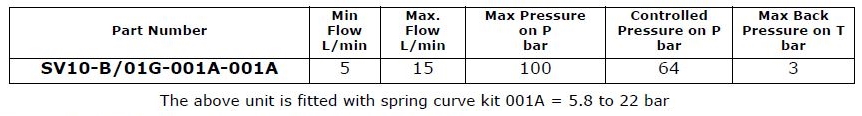

SV10

Monoblock Dual Axis Joystick Hydraulic Pilot Valve with 1 lever and 4 work ports for simultaneous operation of 2 valve sections. This unit can be arranged with several types of handles with or without electric controls. Body in cast iron.

Spool Type Valves Direct Solenoid Operated Wet Armature Solenoids 4 ways,3 position. Flow rates are based on a 10 bar pressure drop using oil to ISO VG 46 at 50˚C

Variable displacement axial piston pumps. These pumps are the optimal solution for mobile applications. Available with a wide range of control options. Compact design makes them ideally suited for direct mount to engines and gearboxes. The displacements in each frame size are infinitely variable between maximum and minimum via simple screw adjustment. The pump shaft supports full torque transmission in multiple unit configurations. They are available in side (L) and rear (P) ported versions. Addition versions available, please contact your nearest Southcott branch or distributor for the availability of the unit to suit your requirements.

Pressure compensated Designed to supply two circuits with a single pump. Maximum pressure - 210 BAR (3000 PSI) Lever is adjustable through 90˚ Port "IN" = Pressure port Port "CF" = Controlled flow Port "EX" = Excess flow (can be used to power a second circuit)
