Recommended For: Air brake, pressurised hot oil return lines and rotary oil/air compressor lines, Meets the requirements of DOT FMVSS 106-74, SAE J1402, SAE J1019 performance specifications for high-temperature transmission and lubrication oil systems using petroleum-based oils.

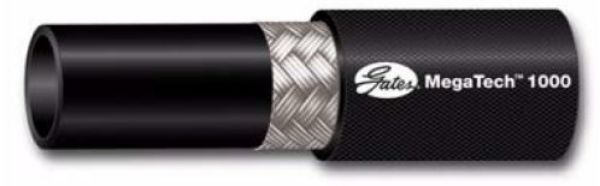

Tube: True-bore GTS black tube, specifically compounded for temperature and chemical resistance (CPE - Type J)*
Reinforcement: One braid of high-tensile steel wire.
Cover: Oil and mildew resistant textile braid, impregnated with synthetic rubber.
Temperature Range: Petroleum-base fluids -40°F to +300°F (-40°C to +149°C). Phosphate ester fluids as recommended by the fluid manufacturer, but within a range of -40°F to +212°F (-40°C to +100°C).
Couplings: Super-Crimp and Gates Mega-Crimp series.
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
