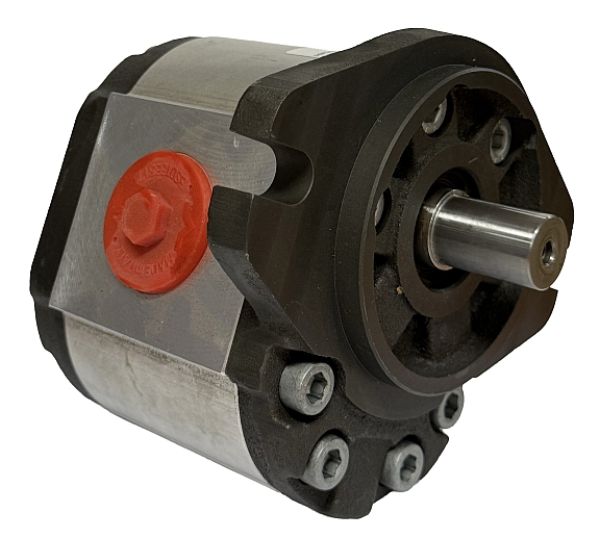

Gear Pump - Group 3 SAE Mount Cast Iron Flange

Picture for manufacturer Galtech
Brand: Galtech
SKU: 3GPGSAE
UOM: EACH

Hydraulic Gear Pump 3GP Series Group 3
Body: Aluminum
Mount : SAE-B
Shaft: 5/8" Keyed or 5/8" 9T Splined
Ports: BSPP

$0.00 inc GST
Part NumberGroupFlange & Covercc/revMountShaftPorts InPorts OutMax Pressure Cont (bar)Max Pressure Int (bar)Max Pressure Peak (bar)Max Shaft Speed (rpm)
3GP-G-230-D-SAEB-B-N-13-0-G3Cast Iron23.0SAE-B 2-Bolt5/8" Keyed1" BSPP3/4" BSPP2502652803500
3GP-G-300-D-SAEB-B-N-13-0-G3Cast Iron30.2SAE-B 2-Bolt5/8" Keyed1" BSPP3/4" BSPP2402552703300
3GP-G-300-D-SAEB-B-N-14-0-G3Cast Iron30.2SAE-B 2-Bolt5/8" 9T Splined1" BSPP3/4" BSPP2402552703300
3GP-G-340-D-SAEB-B-N-13-0-G3Cast Iron33.8SAE-B 2-Bolt5/8" Keyed1" BSPP3/4" BSPP2402552703300
3GP-G-340-D-SAEB-B-N-14-0-G3Cast Iron33.8SAE-B 2-Bolt5/8" 9T Splined1" BSPP3/4" BSPP2402552703300
3GP-G-370-D-SAEB-B-N-13-0-G3Cast Iron37.5SAE-B 2-Bolt5/8" Keyed1" BSPP3/4" BSPP2302452603300
3GP-G-370-D-SAEB-B-N-14-0-G3Cast Iron37.5SAE-B 2-Bolt5/8" 9T Splined1" BSPP3/4" BSPP2302452603300
3GP-G-440-D-SAEB-B-N-14-0-G3Cast Iron44.6SAE-B 2-Bolt5/8" 9T Splined1" BSPP3/4" BSPP2202352503000
3GP-G-530-D-SAEB-B-N-13-0-G3Cast Iron53.0SAE-B 2-Bolt5/8" Keyed1" BSPP3/4" BSPP2102252403000
3GP-G-530-D-SAEB-B-N-14-0-G3Cast Iron53.0SAE-B 2-Bolt5/8" 9T Splined1" BSPP3/4" BSPP2102252403000
3GP-G-620-D-SAEB-B-N-14-0-G3Cast Iron62.7SAE-B 2-Bolt5/8" 9T Splined1" BSPP3/4" BSPP1902002102500
