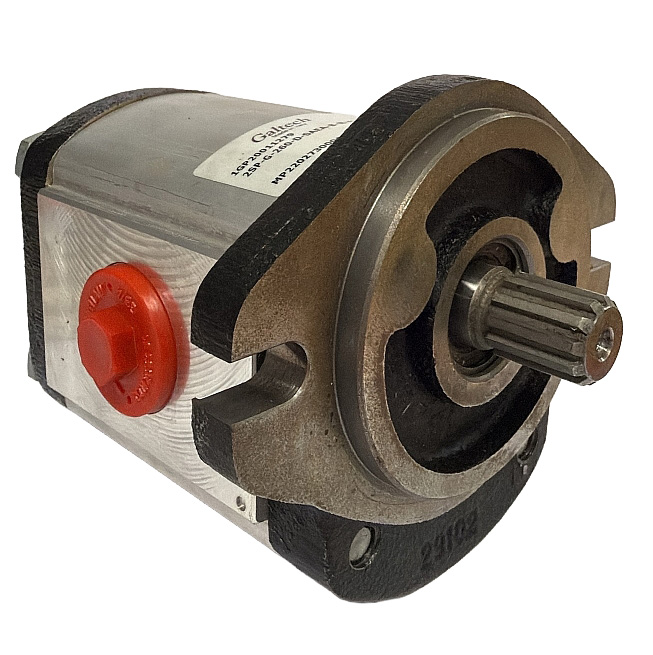

Gear Pump - Group 2 SAE Mount Cast Iron Flange

Name: Gear Pump - Group 2 SAE Mount Cast Iron Flange
SKU: 2SPGSAE
Availability: InStock

Brand: Galtech

SKU: 2SPGSAE

UOM: EACH

Hydraulic Gear Pump 2SP Series Group 2
Body: Aluminium
Mount: SAE-A
Shaft: 18mm 11T Splined
Ports: BSPP

$0.00 inc GST

Part Number	Group	Flange & Cover	cc/rev	Mount	Shaft	Ports In	Ports Out	Max Pressure Cont (bar)	Max Pressure Int (bar)	Max Pressure Peak (bar)	Max Shaft Speed (rpm)
2SP-G-140-D-SAEA-B-N-43-0-G	2	Cast Iron	14.0	SAE-A 2-Bolt	18mm 11T Splined	3/4" BSPP	1/2" BSPP	260	280	300	3500
2SP-G-260-D-SAEA-B-N-43-0-G	2	Cast Iron	26.0	SAE-A 2-Bolt	18mm 11T Splined	3/4" BSPP	1/2" BSPP	180	190	200	2500
