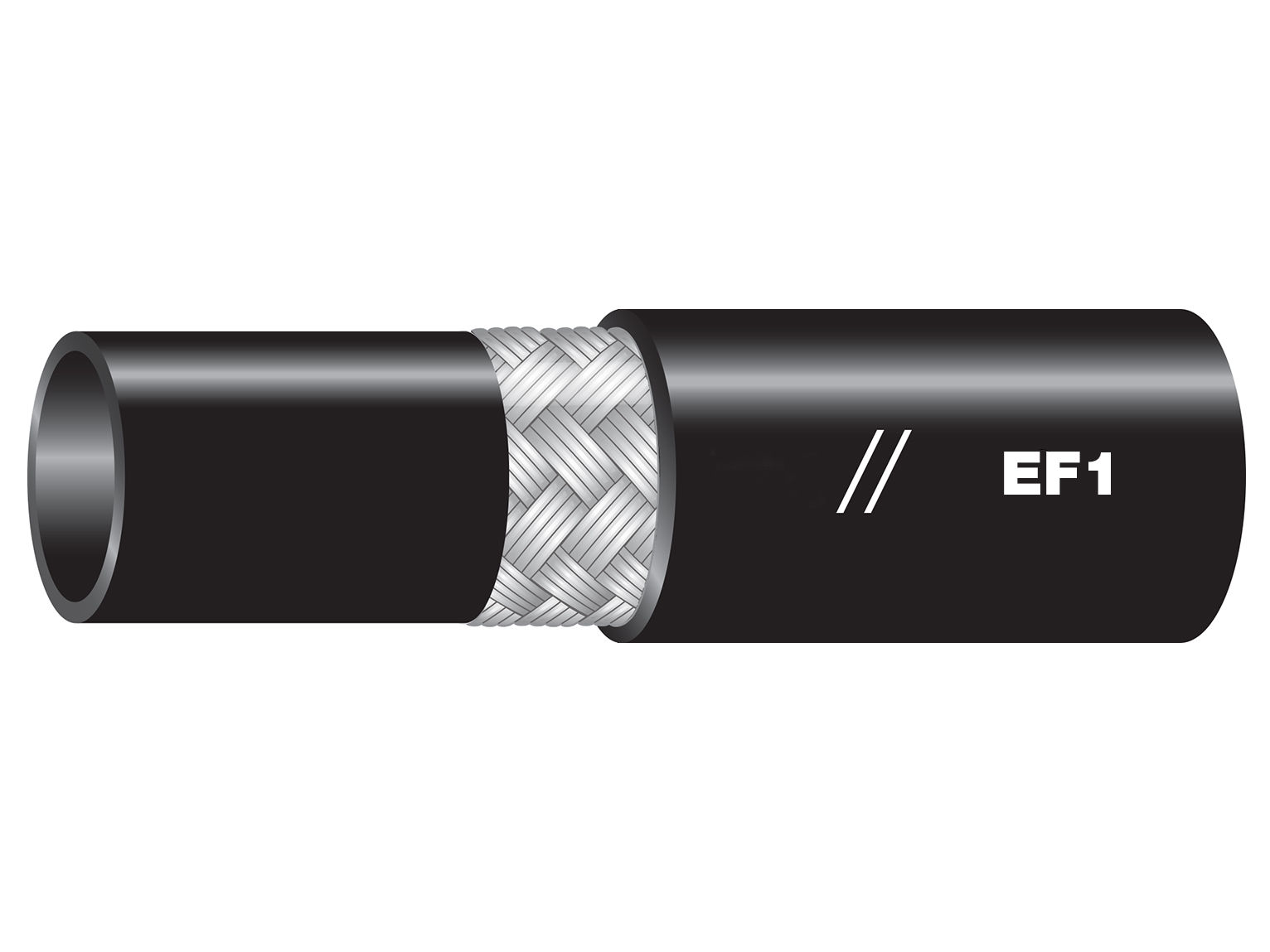

EF1 1-Wire Braid AG Hose SAE 100R2 AT (Non-MSHA Rated Hose)
Recommended For: Medium-pressure hydraulic lines
Standards: SAE 100R2 Type AT and EN853 specifications.
Tube: Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement: One braid of high-tensile steel wire.
Cover: Black, abrasion-resistant synthetic rubber (Modified CR).
Temperature Range: -40°F to +212°F (-40°C to +100°C). For water emulsions: Max 200°F (93°C) pressure lines, Max 180°F (82°C) return lines
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
