C96 - JIC Male Flange Head Straight Code 61

Picture for manufacturer Child
Brand: Child
SKU: C96
UOM: EA

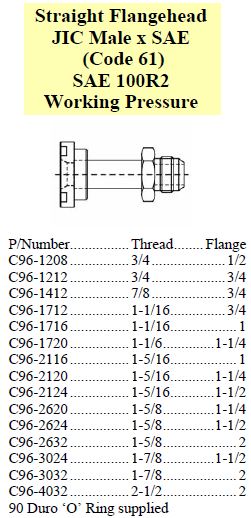

Straight Flange Head JIC-M x SAE Code 61
$0.00 inc GST
Part NumberUOMEnd Type 1Thread Type 1Thread Size 1End Type 2Thread Type 2Thread Size 2
C96-1208EAMJIC3/4"Flange Code 61SAE1/2"
C96-1212EAMJIC3/4"Flange Code 61SAE3/4"
C96-1410KEAMJIC7/8"Flange Code 61Komatsu5/8"
C96-1412EAMJIC7/8"Flange Code 61SAE3/4"
C96-1712EAMJIC1-1/16"Flange Code 61SAE3/4"
C96-1716EAMJIC1-1/16"Flange Code 61SAE1"
C96-1720EAMJIC1-1/6"*Flange Code 61SAE1-1/4"
C96-2116EAMJIC1-5/16"Flange Code 61SAE1"
C96-2120EAMJIC1-5/16"Flange Code 61SAE1-1/4"
C96-2124EAMJIC1-5/16"Flange Code 61SAE1-1/2"
C96-2620EAMJIC1-5/8"Flange Code 61SAE1-1/4"
C96-2624EAMJIC1-5/8"Flange Code 61SAE1-1/2"
C96-2632EAMJIC1-5/8"Flange Code 61SAE2"
C96-3024EAMJIC1-7/8"Flange Code 61SAE1-1/2"
C96-3032EAMJIC1-7/8"Flange Code 61SAE2"
C96-4032EAMJIC2-1/2"Flange Code 61SAE2"
