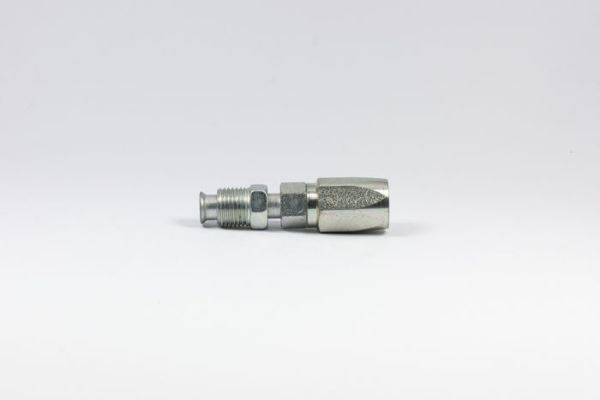

C5E-RMIX - Straight Male SAE Inverted Flare C5E

SGX Standard: Available in black, Blue, Yellow and Red. SGXFRAS Flame Retardant Anti Static: compliance to ISO6805 Flat plastic spiral wrap desiged to protect hose or bundle hose for appearance and safety.

Wire Spring Guard - recommended for hose protection & abrasion resistance

Gates Nylon Sleeves perform a dual role: They provide excellent abrasive resistance to protect individual hoses. They can be used to bundle several hose assemblies together for maximum protection. Downtime and maintenance costs are reduced. Nylon Sleeves are unique because they form an extra protective layer against abrasive forces. Construction: Thousands of tiny Nylon filaments, woven into the texturized yarn, "friz" providing a self-renewing shield that is extremely resistant to severe abrasion. Note: Do not use Nylon Sleeve where ambient temperature exceeds 120°C.

Ideal for use with hose burst protective sleeving.

Recommended For: Air brake hose, power steering (CAUTION: Intended for heavy-duty commercial vehicle use only), fuel filter, engine and transmission coolant lines, and hot (+300°F) lube oil lines. Tube: Black, oil and heat resistant, synthetic rubber. (Nitrile - Type C). Reinforcement: One braid of high-tensile steel wire over one braid of polyester. Cover: Black, oil and heat resistant, textile braid impregnated with synthetic rubber. Green stripe for easy identification. Temperature Range: -40°F to +300°F (-40°C to +149°C). Air to +250°F (+121°C) maximum only. Couplings: Super-Crimp and Field-Fit C5E series.
