Recommended For: Medium pressure hydraulic petroleum-based oil lines in impulse applications, lube oil, air and water in applications such as air brakes, power steering (CAUTION: Intended for heavy-duty commercial vehicle use only), Turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications. DOT FMVSS 106-74 Type - All and SAE J1402 Type All for air brake applications (-4 and -12). Not recommended for gasoline or diesel fuel.

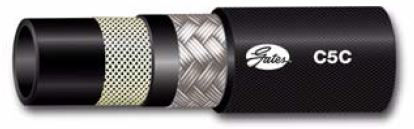

Tube: -4 and -5: black, oil and heat resistant synthetic rubber (Neoprene Type A). -6 thru -40 (Nitrile - Type C).
Reinforcement: One braid of high tensile carbon steel wire over one braid of polyester.
Cover: Black, oil and mildew resistant, polyester braid.
Temperature Range: Under SAE 100R5 (hydraulic) conditions -40°F to +212°F (-40°C to +100°C). All-purpose fleet application (hot lube oil lines) -40°F to +300°F (-40°C to +149°C). Air to +160°F (+71°C) only. For water emulsions etc. Avoid continuous use at maximum temperature concurrent with maximum working pressure.
Couplings: Super-Crimp and C5 Field-Fit series.
Refer to the Southcott Crimp Charts or Gates eCrimp database for current crimp specifications.
