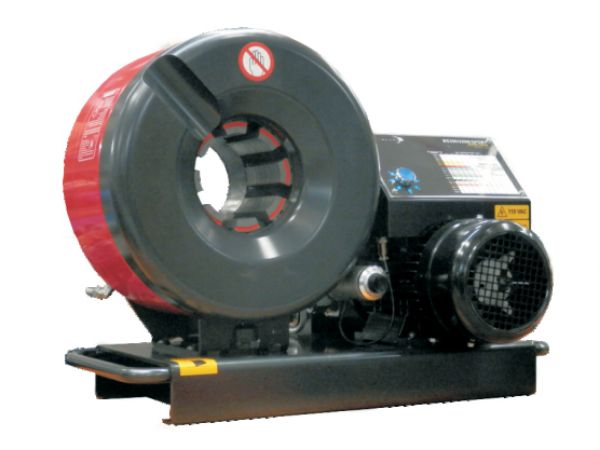

BS350/220M/SPORT - 2"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS350/220M/SPORT
  • 2" 6 Wire Hydraulic hose capability
  • Shoe cluster auto indexing - auto lubrication
  • Dies without pins
  • Change dies without a tool
  • 220 VAC supply
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 92mm diam.
$0.00 inc GST

A precision 3" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  110/220 VAC 50/60 Hz.  The BS350/220M/SPORT has an indexing shoe cluster that provides auto lubrication with >97% efficiency.  Single button operation where correct installed diameter is achieved, stopped, then automatic rapid retract to fully open position.  Able to crimp all hydraulic hoses to 2" diameter/isobaric 6000.

A precision 3" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  110/220 VAC 50/60 Hz.  The BS350/220M/SPORT has an indexing shoe cluster that provides auto lubrication with >97% efficiency.  Single button operation where correct installed diameter is achieved, stopped, then automatic rapid retract to fully open position.  Able to crimp all hydraulic hoses to 2" diameter/isobaric 6000.

Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 92
Max. Die Set Opening (mm + Die Set Size) 50
Radial Swaging Force (kN) 4100
Cycle Speed (Full Stroke-Complete Cycle sec.) 18

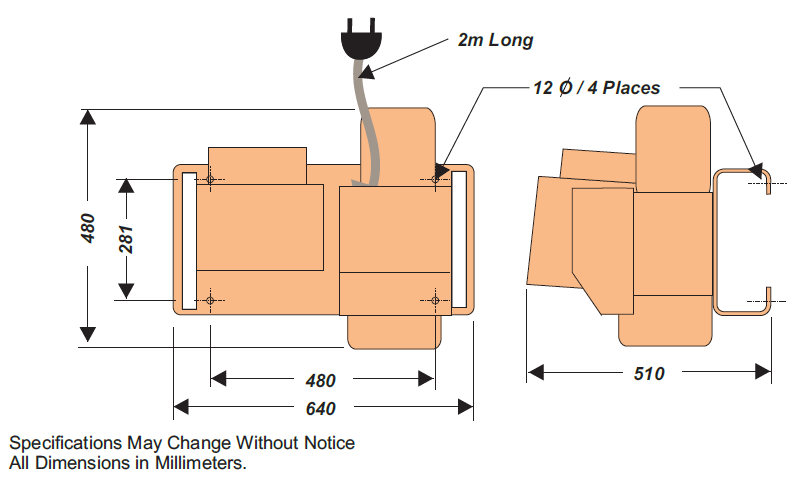

Dimensions (mm) 600x560x570 mm
Weight (kg without Dies & Oil) 220
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 12.2
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78

Standard Die Set

Product Number

Range (mm)

BS50ESDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.













50E-16

16 – 20

50E-19

19 – 24

50E-22

22 – 27

50E-26

26 – 31

50E-31

31 – 37

50E-36

36 – 42

50E-41

41 – 48

50E-47

47 – 54

50E-53

53 – 60

50E-60

60 – 68

50E-68

68 – 78



Product Files
Datasheets
Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 92
Max. Die Set Opening (mm + Die Set Size) 50
Radial Swaging Force (kN) 4100
Cycle Speed (Full Stroke-Complete Cycle sec.) 18
Dimensions (mm) 600x560x570 mm
Weight (kg without Dies & Oil) 220
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 12.2
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78
