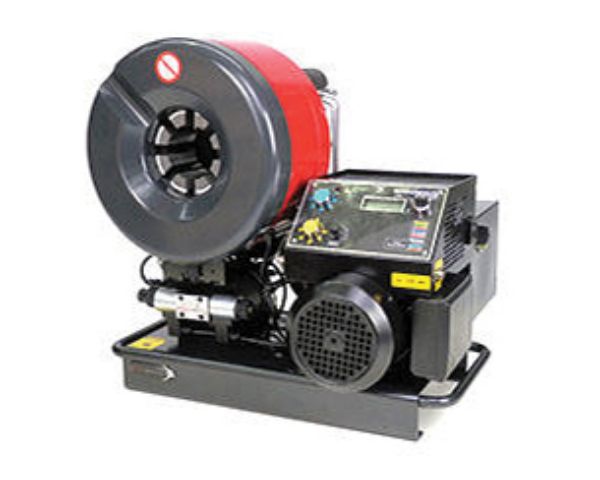

BS350/220EX/LITE - 2"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS350/220EX/LITE
  • 2" 6 wire hydraulic hose capability
  • Shoe cluster auto indexing - auto lubrication
  • Dies without pins
  • 220VAC supply
  • Automatic motor control
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 92mm diam.
$0.00 inc GST

A precision 2" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply and super charged for rapid operation.  Express control enables use of colour coded dies with automatic die selection with imperial or metric Inputs. Every crimp is measured and checked.

A precision 2" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply and super charged for rapid operation.  Express control enables use of colour coded dies with automatic die selection with imperial or metric Inputs. Every crimp is measured and checked.

Products specifications
Swaging Range (mm) with Standard Die Set 16 to 78
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 92
Max. Die Set Opening (mm + Die Set Size) 50
Radial Swaging Force (kN) 4100
Cycle Speed (Full Stroke-Complete Cycle sec.) 15

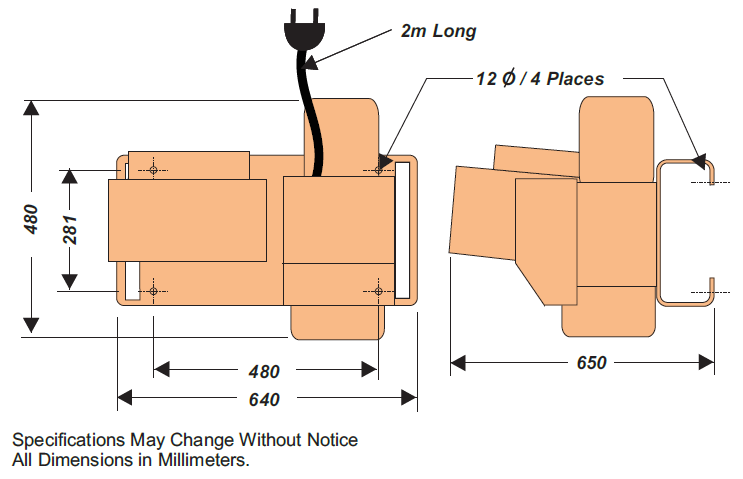

Dimensions (mm) 600x420x650 mm
Weight (kg without Dies & Oil) 260
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.8
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 4.6
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 2"
Hose Wire Capability 6, 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS50ESDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.













50E-16

16 – 20

50E-19

19 – 24

50E-22

22 – 27

50E-26

26 – 31

50E-31

31 – 37

50E-36

36 – 42

50E-41

41 – 48

50E-47

47 – 54

50E-53

53 – 60

50E-60

60 – 68

50E-68

68 – 78



Product Files
Datasheets
Products specifications
Swaging Range (mm) with Standard Die Set 16 to 78
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 92
Max. Die Set Opening (mm + Die Set Size) 50
Radial Swaging Force (kN) 4100
Cycle Speed (Full Stroke-Complete Cycle sec.) 15
Dimensions (mm) 600x420x650 mm
Weight (kg without Dies & Oil) 260
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.8
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 4.6
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 2"
Hose Wire Capability 6, 4, 2, 1
Related products
Picture of Foot Pedal

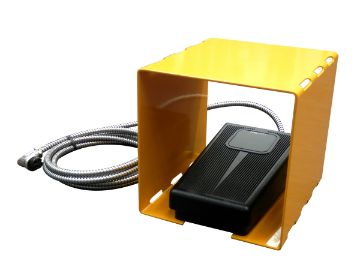

Foot Pedal

The Foot Pedal allows the operator to operate the press hands-free.

$0.00 inc GST
Picture of Height Adjustable Stand Picture of Height Adjustable Stand

Height Adjustable Stand

This is a Height Adjustable Stand allows the Swage Press to be mounted at the most ergonomic height in relation to operator height.

$0.00 inc GST
Picture of Quick Change Rack (suit BS350 Series)

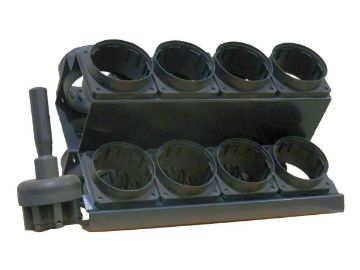

Quick Change Rack (suit BS350 Series)

The Quick Change Rack can be mounted against the wall or bolted into the Height Adjustable Stand (BS-CAPRI). Includes a Quick Change Tool (BS50QCT).

$0.00 inc GST
Picture of Quick Change Tool (suit BS350 Series)

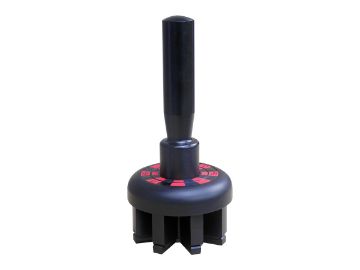

Quick Change Tool (suit BS350 Series)
