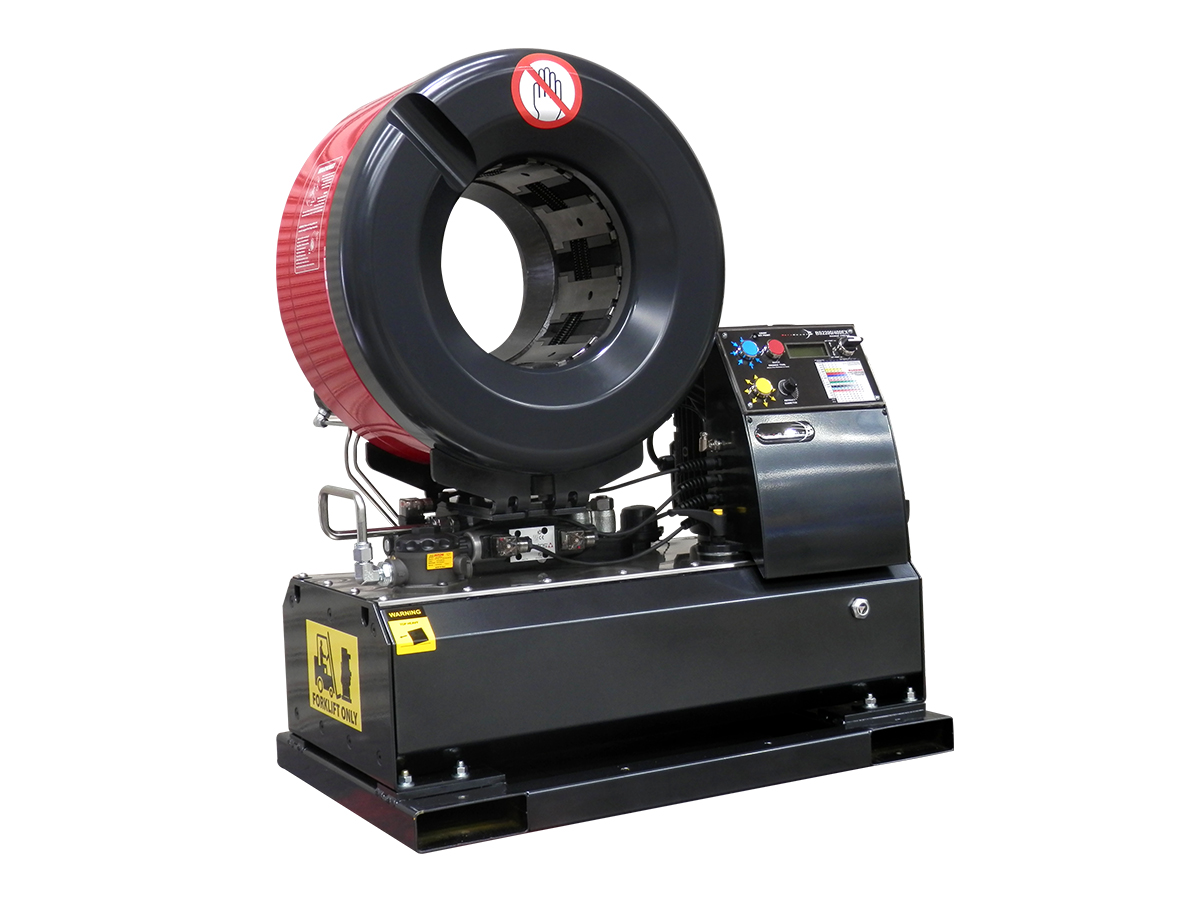

BS2200/400EX - 6"

Brand: Betaswage

SKU: BS2200/400EX

2" 6 wire hydraulic hose capability
6" industrial hose capability
Large aperture
400 VAC 3-phase supply
Automatic motor control
Standard swaging range 16 to 78mm diam.
Extended swaging range 6.5 to 186mm diam.

$0.00 inc GST

A precision 6" nom. hose crimp press for the production of large diameter hose assemblies of all types. Designed specifically for high production work with rapid operation with a large reservoir for continuous use. The BS2200/400EX press has a patented indexing shoe cluster for continuous operation with auto lubrication. The BS2200/400EX press is unique in that it has enormous radial force enabling assembly of the complete range of heavy duty hydraulic couplings as well as industrial hoses up to 6" diameter.

Overview
Specifications

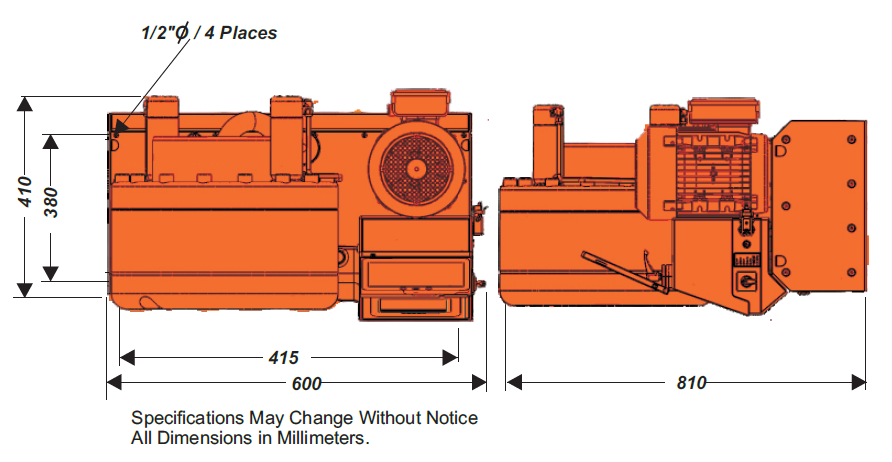

Dimensions
Standard Die Set
Download

Products specifications

Extended Swaging Range (mm) with Optional Die(s)	6.5 to 186
Max. Die Set Opening (mm + Die Set Size)	70
Radial Swaging Force (kN)	5300
Cycle Speed (Full Stroke-Complete Cycle sec.)	15
Dimensions (mm)	810x510x890 mm
Weight (kg without Dies & Oil)	420
Supply (Volts)	400 VAC 3-Phase
Supply (Amps)	12
Power (kW)	5.5
Rated Pressure (bar)	300
Pump Flow Rate (L/min)	18.7
Reservoir Capacity (Litres)	60
Filtration (um)	10
Hose Diameter Capability	2"
Hose Wire Capability	6, 4, 2, 1
Swaging Range (mm) with Standard Die Set	16 to 78

Standard Die Set	Product Number	Range (mm)
BS50SDS 11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size. For this crimper, this die set must be used in conjunction with the SP200-50 Spacer Set.	50-16	16 – 20
	50-19	19 – 24
	50-22	22 – 27
	50-26	26 – 31
	50-31	31 – 37
	50-36	36 – 42
	50-41	41 – 48
	50-47	47 – 54
	50-53	53 – 60
	50-60	60 – 68
	50-68	68 – 78
Spacer Set SP200-50	SP200-50	The SP200-50 Spacer Set allows for the use of more economical Type 50 die sets for swaging diameters less than 90mm. For diameters greater than 90mm, the SP200-50 Spacer Set is removed and the Type 200 die sets are used.

Product Files

Datasheets

BS2200/400EX Datasheet
