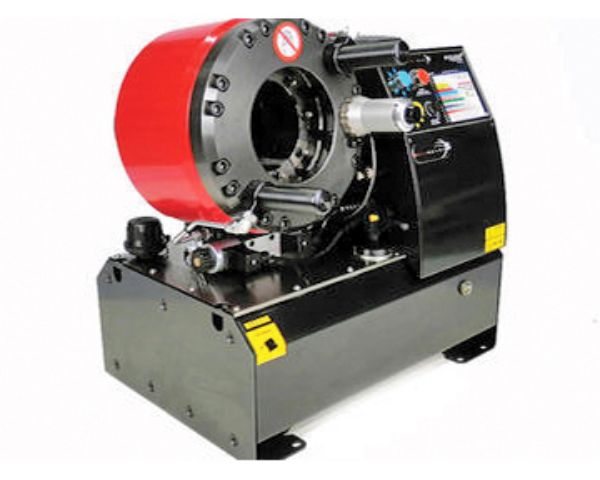

BS150/400M - 2"

Brand: Betaswage

SKU: BS150/400M

2" 4 wire hydraulic hose capability
3" 2 wire hydraulic hose capability
Dies with colour coding
Large aperture
400 VAC 3-phase supply
Automatic motor control
Standard swaging range 16 to 78mm diam.
Extended swaging range 6.5 to 100mm diam.

$0.00 inc GST

A precision 2" nom. swage press for the production of hose assemblies of all types. Designed specifically for high production work with rapid operation with a large reservoir for continuous use. The press is of a design with a large aperture enabling optional die sets to 3" hose of light construction. The die sets used are those of a popular European “pin” design.

Overview
Specifications

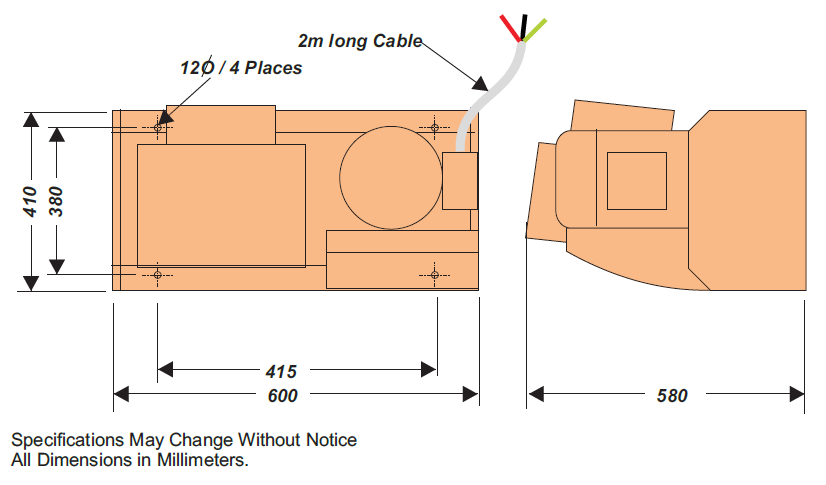

Dimensions
Standard Die Set
Download

Products specifications

Extended Swaging Range (mm) with Optional Die(s)	6.5 to 94
Max. Die Set Opening (mm + Die Set Size)	34
Radial Swaging Force (kN)	2200
Cycle Speed (Full Stroke-Complete Cycle sec.)	18
Dimensions (mm)	600x420x600 mm
Weight (kg without Dies & Oil)	178
Supply (Volts)	400 VAC 3-Phase
Supply (Amps)	12
Power (kW)	4
Rated Pressure (bar)	300
Pump Flow Rate (L/min)	11.5
Reservoir Capacity (Litres)	40
Filtration (um)	10
Hose Diameter Capability	3"
Hose Wire Capability	4, 2, 1
Swaging Range (mm) with Standard Die Set	16 to 78

Standard Die Set	Product Number	Range (mm)
BS50SDS 11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.	50-16	16 – 20
	50-19	19 – 24
	50-22	22 – 27
	50-26	26 – 31
	50-31	31 – 37
	50-36	36 – 42
	50-41	41 – 48
	50-47	47 – 54
	50-53	53 – 60
	50-60	60 – 68
	50-68	68 – 78
