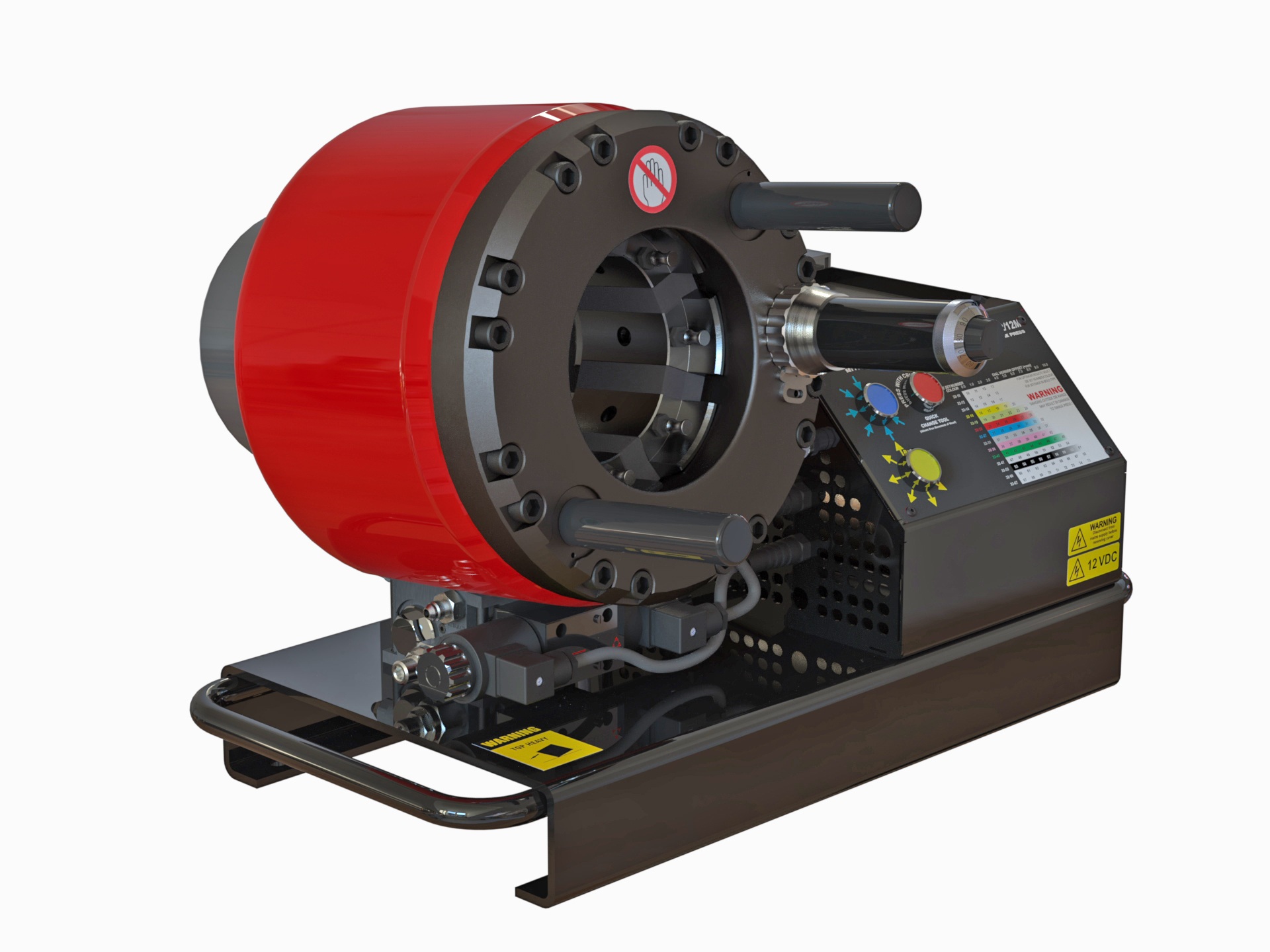

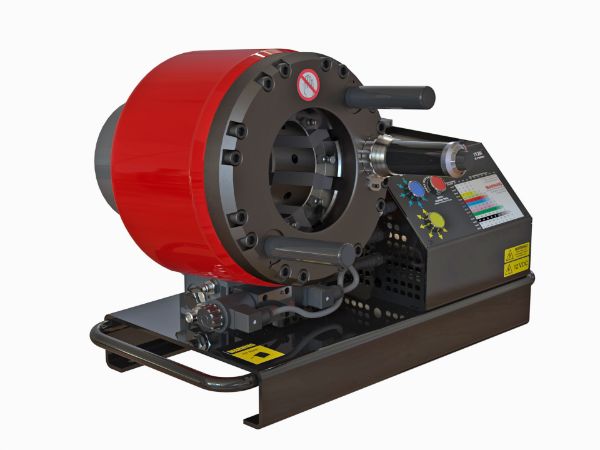

BS150/24M/SPORT - 2"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS150/24M/SPORT
  • 2" 4 Wire Hydraulic hose capability.
  • 3" 2 Wire Hydraulic hose capability.
  • Dies With Colour Coding.
  • Large Aperture
  • 24 VDC Supply.
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 94mm diam.
$0.00 inc GST

A Precision 3" Nom. Swage Press for the production of hose assemblies of all types. Designed specifically for portability, with versatile single phase supply.
The BS150/24M/SPORT uses Pinless/Push in/Pull Out Dies, enabling change by hand. Single Button operation where correct installed diameter is achieved, halted then automatic rapid retract to fully open position. Versatile Swage Press able to crimp all Hydraulic Hoses to 2" diameter / Isobaric 4000.

A Precision 3" Nom. Swage Press for the production of hose assemblies of all types. Designed specifically for portability, with versatile single phase supply.
The BS150/24M/SPORT uses Pinless/Push in/Pull Out Dies, enabling change by hand. Single Button operation where correct installed diameter is achieved, halted then automatic rapid retract to fully open position. Versatile Swage Press able to crimp all Hydraulic Hoses to 2" diameter / Isobaric 4000.

Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 94
Max. Die Set Opening (mm + Die Set Size) 34
Radial Swaging Force (kN) 2200
Cycle Speed (Full Stroke-Complete Cycle sec.) 22
Dimensions (mm) 600x560x520 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 24 VDC
Supply (Amps) 150
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 12
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78

Standard Die Set

Product Number

Range (mm)

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.













50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78



Product Files
Datasheets
Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 94
Max. Die Set Opening (mm + Die Set Size) 34
Radial Swaging Force (kN) 2200
Cycle Speed (Full Stroke-Complete Cycle sec.) 22
Dimensions (mm) 600x560x520 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 24 VDC
Supply (Amps) 150
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 12
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78
