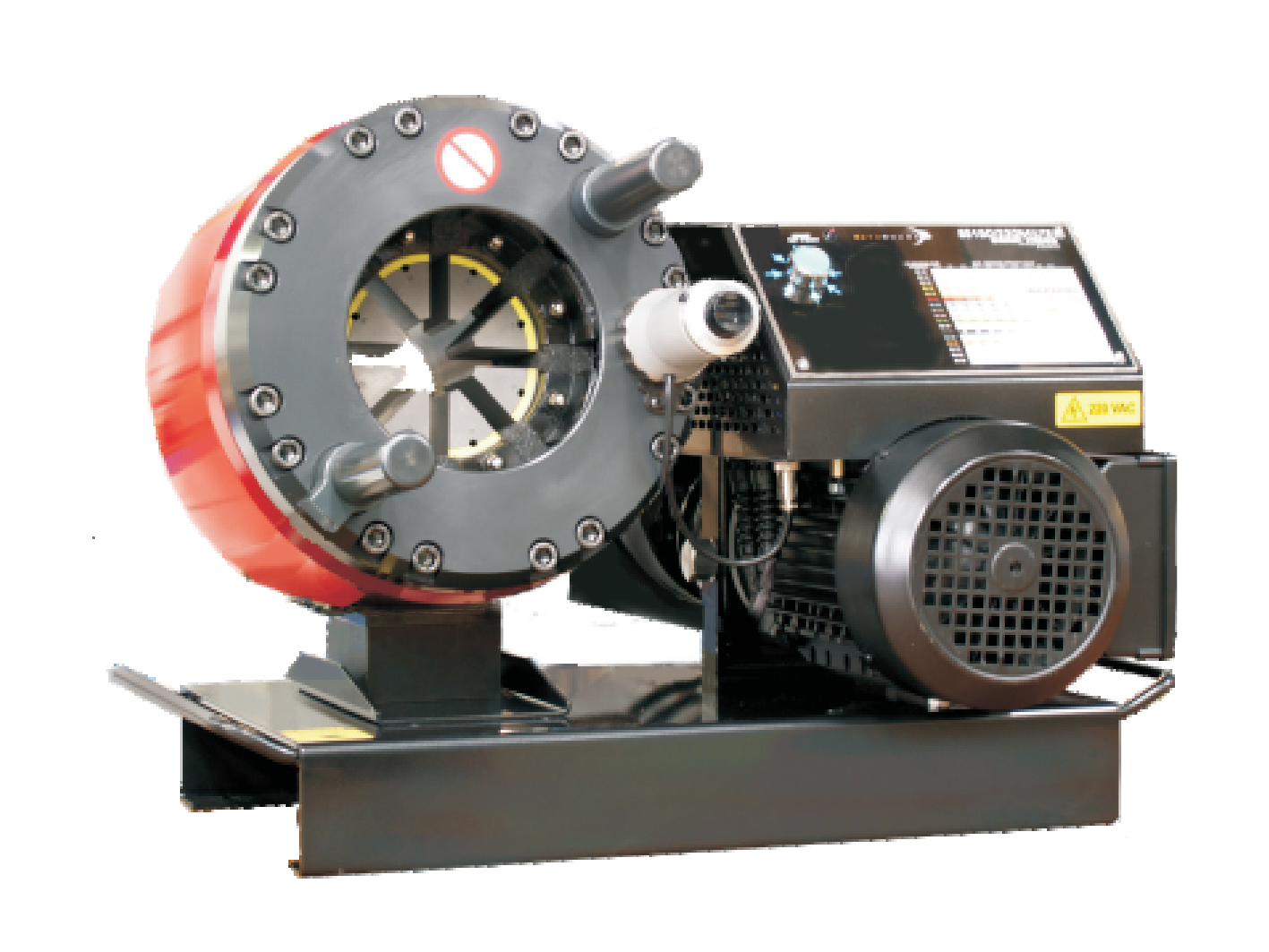

BS150/220M/SPORT - 2"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS150/220M/SPORT
  • 2" 4 wire hydraulic hose capability
  • 3" 2 wire hydraulic hose capability
  • Dies with colour coding
  • Large aperture
  • 220 VAC supply
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 100mm diam.
$0.00 inc GST

A precision 3" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The BS150/220M/SPORT uses pinless/push in/pull out dies, enabling change by hand or with optional BS32EQC Quick Change Tool without press operation. Single button operation where correct installed diameter is achieved, halted then automatic rapid retract to fully open position.  32E type dies supplied with Quick Change Containers.

A precision 3" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The BS150/220M/SPORT uses pinless/push in/pull out dies, enabling change by hand or with optional BS32EQC Quick Change Tool without press operation. Single button operation where correct installed diameter is achieved, halted then automatic rapid retract to fully open position.  32E type dies supplied with Quick Change Containers.

Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 94
Max. Die Set Opening (mm + Die Set Size) 34
Radial Swaging Force (kN) 2200
Cycle Speed (Full Stroke-Complete Cycle sec.) 18
Dimensions (mm) 600x560x520 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 6.9
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78

Standard Die Set

Product Number

Range (mm)

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.













50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78



Product Files
Datasheets
Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 94
Max. Die Set Opening (mm + Die Set Size) 34
Radial Swaging Force (kN) 2200
Cycle Speed (Full Stroke-Complete Cycle sec.) 18
Dimensions (mm) 600x560x520 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 6.9
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78
