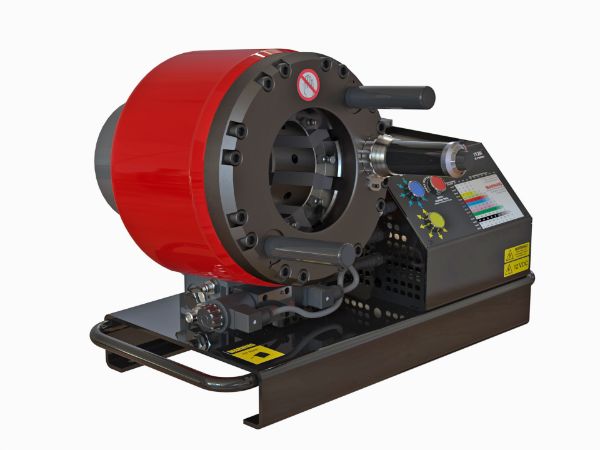

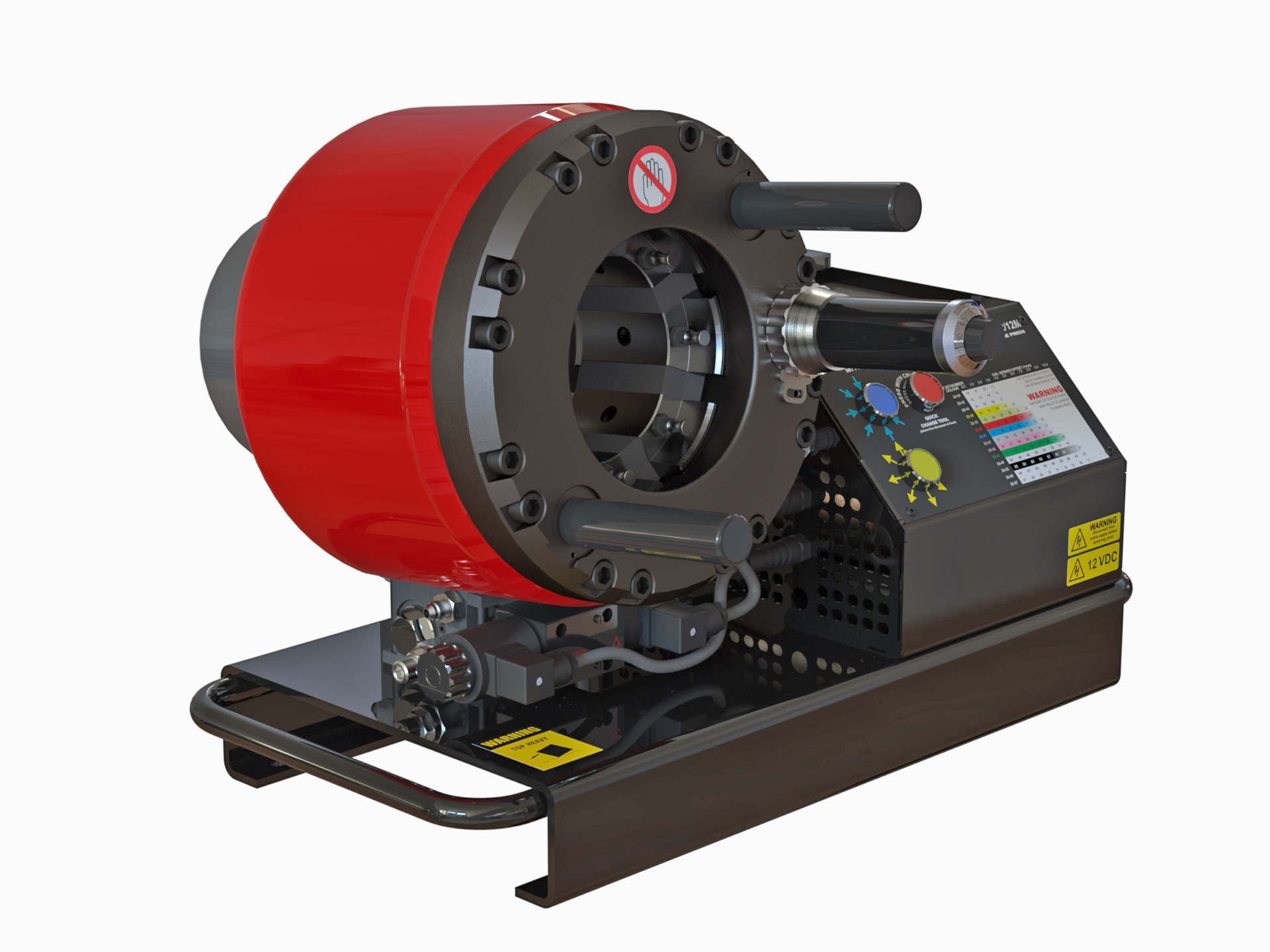

BS150/12M/SPORT - 2"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS150/12M/SPORT
  • 2" 4 wire hydraulic hose capability
  • 3" 2 wire hydraulic hose capability
  • Dies with colour coding
  • Large aperture
  • 12 VDC supply
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 94mm diam.
$0.00 inc GST

A precision 3" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The BS150/12M/SPORT uses pinless/push in/pull out dies, enabling change by hand. Single button operation where correct installed diameter is achieved, halted then automatic rapid retract to fully open position.  A versatile swage press able to crimp all hydraulic hoses to 2" diameter / isobaric 4000.

A precision 3" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The BS150/12M/SPORT uses pinless/push in/pull out dies, enabling change by hand. Single button operation where correct installed diameter is achieved, halted then automatic rapid retract to fully open position.  A versatile swage press able to crimp all hydraulic hoses to 2" diameter / isobaric 4000.

Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 94
Max. Die Set Opening (mm + Die Set Size) 34
Radial Swaging Force (kN) 2200
Cycle Speed (Full Stroke-Complete Cycle sec.) 18

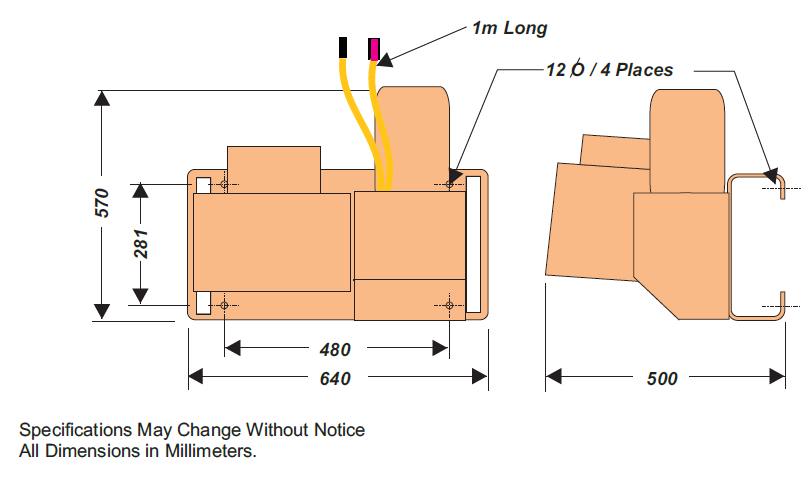

Dimensions (mm) 600x560x520 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 12 VDC
Supply (Amps) 300
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 4.6+15
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78

Standard Die Set

Product Number

Range (mm)

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.













50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78



Product Files
Datasheets
Products specifications
Extended Swaging Range (mm) with Optional Die(s) 6.5 to 94
Max. Die Set Opening (mm + Die Set Size) 34
Radial Swaging Force (kN) 2200
Cycle Speed (Full Stroke-Complete Cycle sec.) 18
Dimensions (mm) 600x560x520 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 12 VDC
Supply (Amps) 300
Power (kW) 1.5
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 4.6+15
Reservoir Capacity (Litres) 10
Filtration (um) 100
Hose Diameter Capability 3"
Hose Wire Capability 4, 2, 1
Swaging Range (mm) with Standard Die Set 16 to 78
