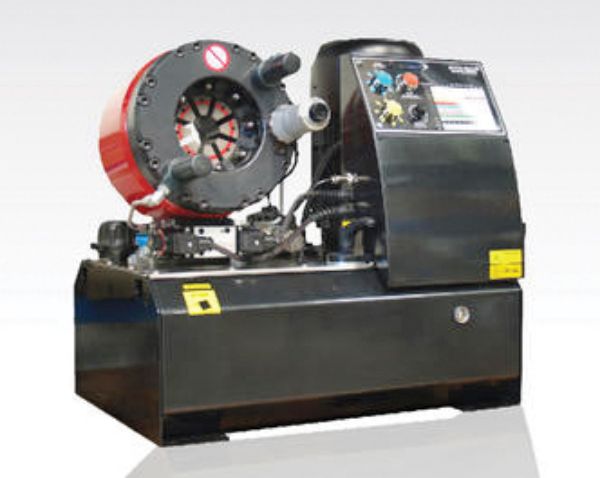

BS132/400M - 1-1/4"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS132/400M
  • 1-1/4" 4 wire hydraulic hose capability
  • 2" 2 wire hydraulic hose capability
  • Dies with colour coding pins
  • Large aperture
  • 400 VAC 3-phase supply
  • Automatic motor control
  • Standard swaging range 16 to 55mm diam.
  • Extended swaging range 6.5 to 68mm diam.
$0.00 inc GST

A precision 1-1/2" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The BS132/220M/SPORT uses pinless/push in/pull out dies, enabling change by hand.  Single button operation where exact installed diameter is achieved, halted then automatic rapid retract to fully open position.  This machine offers you a simple product with a basic hydraulic system and no  electrical switchgear.

A precision 1-1/2" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The BS132/220M/SPORT uses pinless/push in/pull out dies, enabling change by hand.  Single button operation where exact installed diameter is achieved, halted then automatic rapid retract to fully open position.  This machine offers you a simple product with a basic hydraulic system and no  electrical switchgear.

Products specifications
Swaging Range (mm) with Standard Die Set 16 to 55
Extended Swaging Range (mm) with Optional Die(s) 6 to 68
Max. Die Set Opening (mm + Die Set Size) 25
Radial Swaging Force (kN) 1500
Cycle Speed (Full Stroke-Complete Cycle sec.) 12

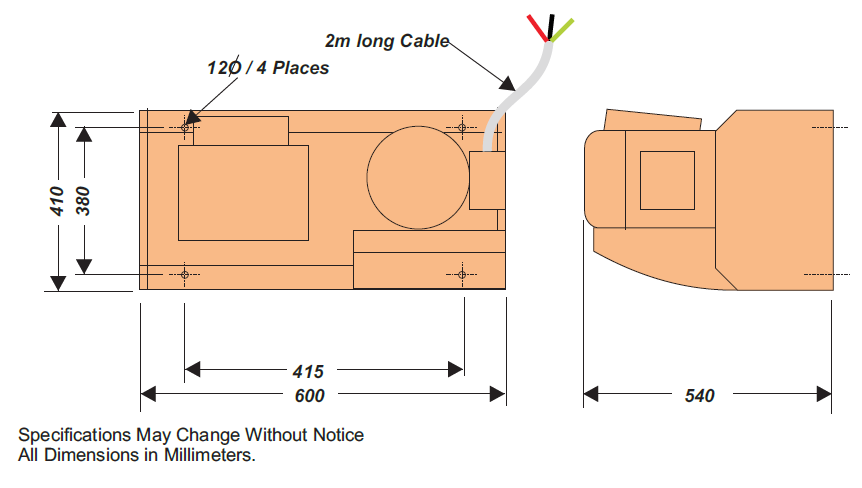

Dimensions (mm) 600x420x540 mm
Weight (kg without Dies & Oil) 140
Supply (Volts) 400 VAC 3-Phase
Supply (Amps) 8
Power (kW) 3
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 6.7
Reservoir Capacity (Litres) 40
Filtration (um) 10
Hose Diameter Capability 2"
Hose Wire Capability 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS32SDS

8 die sets supplied as a package to allow infinite swaging between 16 to 55mm finished swage size.

32-16

16 – 20

32-19

19 – 24

32-23

23 – 28

32-27

27 – 32

32-31

31 – 37

32-36

36 – 42

32-41

41 – 48

32-47

47 – 55
Product Files
Datasheets
Products specifications
Swaging Range (mm) with Standard Die Set 16 to 55
Extended Swaging Range (mm) with Optional Die(s) 6 to 68
Max. Die Set Opening (mm + Die Set Size) 25
Radial Swaging Force (kN) 1500
Cycle Speed (Full Stroke-Complete Cycle sec.) 12
Dimensions (mm) 600x420x540 mm
Weight (kg without Dies & Oil) 140
Supply (Volts) 400 VAC 3-Phase
Supply (Amps) 8
Power (kW) 3
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 6.7
Reservoir Capacity (Litres) 40
Filtration (um) 10
Hose Diameter Capability 2"
Hose Wire Capability 4, 2, 1
