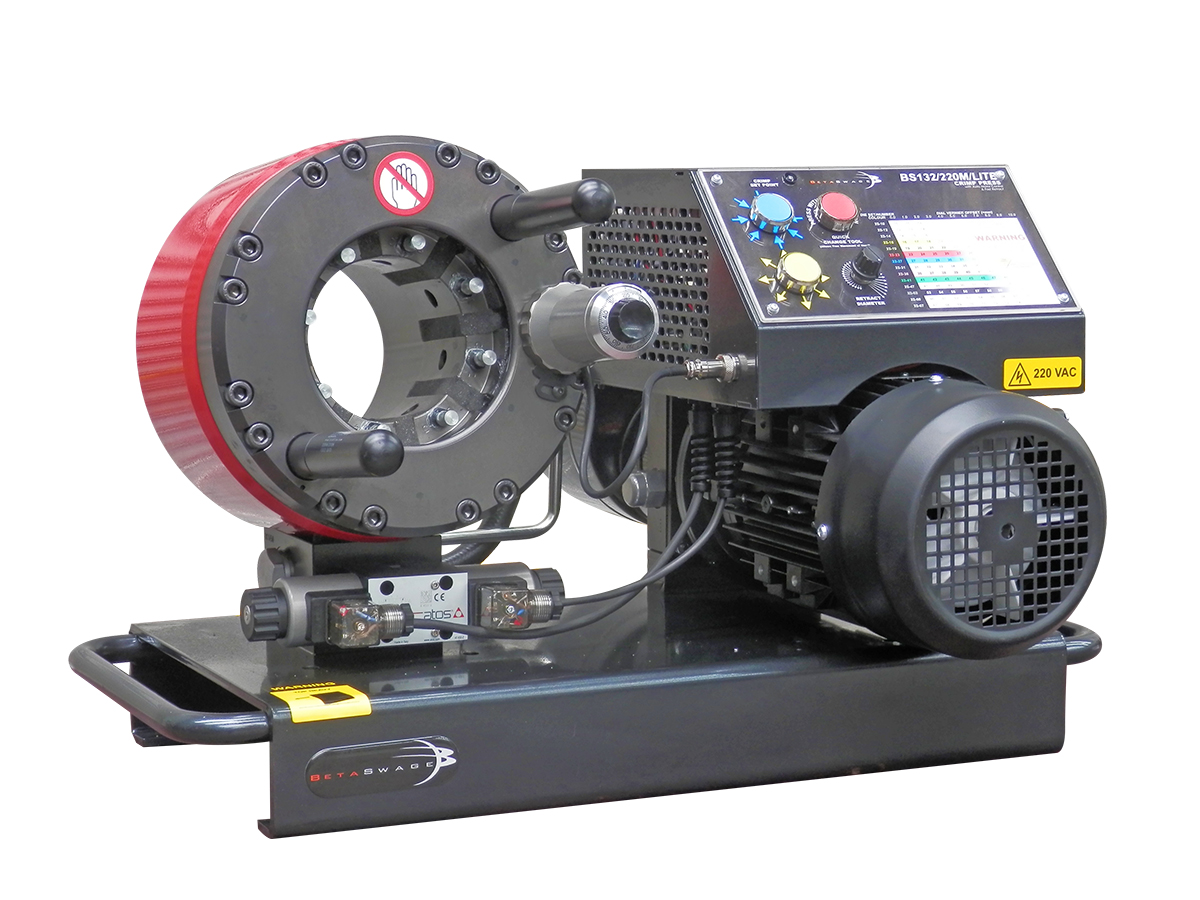

BS132/220M/LITE - 1-1/4"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS132/220M/LITE
  • 1-1/4" 4 wire hydraulic hose capability
  • 2" 2 wire hydraulic hose capability
  • Dies with colour coding pins
  • Large aperture
  • Automatic motor control
  • Standard swaging range 16 to 55mm diam.
  • Extended swaging range 6.5 to 68mm diam.
$0.00 inc GST

A precision 1-1/4" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The press is of a design with a large aperture enabling optional die sets to 2" hose of light construction. The die sets used are those of a popular European “pin” design.

A precision 1-1/4" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The press is of a design with a large aperture enabling optional die sets to 2" hose of light construction. The die sets used are those of a popular European “pin” design.

Products specifications
Swaging Range (mm) with Standard Die Set 16 to 55
Extended Swaging Range (mm) with Optional Die(s) 6 to 68
Max. Die Set Opening (mm + Die Set Size) 25
Radial Swaging Force (kN) 1500
Cycle Speed (Full Stroke-Complete Cycle sec.) 18

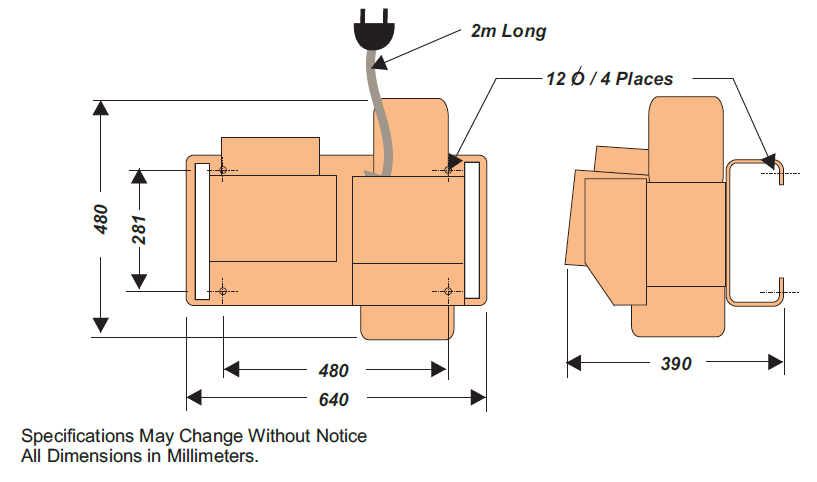

Dimensions (mm) 600x420x570 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.8
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 4.6
Reservoir Capacity (Litres) 5
Filtration (um) 100
Hose Diameter Capability 2"
Hose Wire Capability 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS32SDS

8 die sets supplied as a package to allow infinite swaging between 16 to 55mm finished swage size.

32-16

16 – 20

32-19

19 – 24

32-23

23 – 28

32-27

27 – 32

32-31

31 – 37

32-36

36 – 42

32-41

41 – 48

32-47

47 – 55
Product Files
Datasheets
Products specifications
Swaging Range (mm) with Standard Die Set 16 to 55
Extended Swaging Range (mm) with Optional Die(s) 6 to 68
Max. Die Set Opening (mm + Die Set Size) 25
Radial Swaging Force (kN) 1500
Cycle Speed (Full Stroke-Complete Cycle sec.) 18
Dimensions (mm) 600x420x570 mm
Weight (kg without Dies & Oil) 130
Supply (Volts) 110 - 220 VAC
Supply (Amps) 30 - 15
Power (kW) 1.8
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 4.6
Reservoir Capacity (Litres) 5
Filtration (um) 100
Hose Diameter Capability 2"
Hose Wire Capability 4, 2, 1
Related products
Picture of Die & Tool Rack (suit BS132 Series) Picture of Die & Tool Rack (suit BS132 Series)

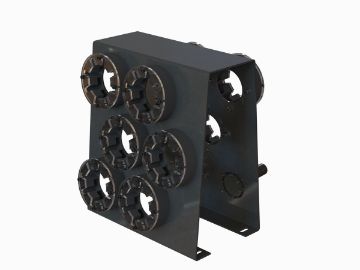

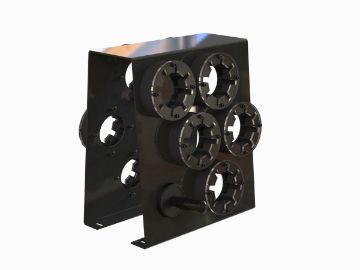

Die & Tool Rack (suit BS132 Series)

This is a Die and Tool Rack, and is bolted on top of the BSAR Access Rail, behind the swage press. Includes a Quick Change Tool (BS32QCT).

$0.00 inc GST
Picture of Foot Pedal

Foot Pedal

The Foot Pedal allows the operator to operate the press hands-free.

$0.00 inc GST
Picture of Quick Change Rack (suit BS132 Series) Picture of Quick Change Rack (suit BS132 Series)

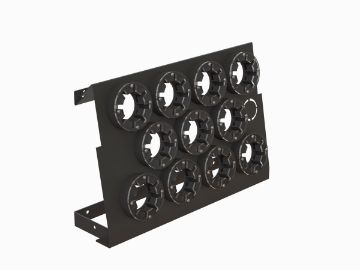

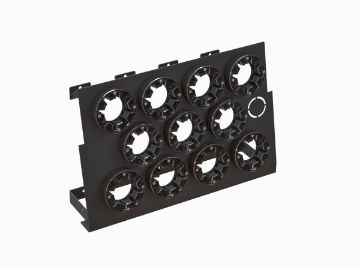

Quick Change Rack (suit BS132 Series)

The Quick Change Rack can be mounted against the wall or bolted into the Height Adjustable Stand (BS-CAPRI). Includes a Quick Change Tool (BS32QCT).

$0.00 inc GST
Picture of Quick Change Tool (suit BS132 Series) Picture of Quick Change Tool (suit BS132 Series)

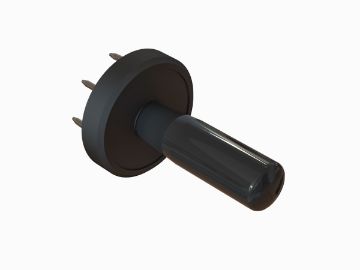

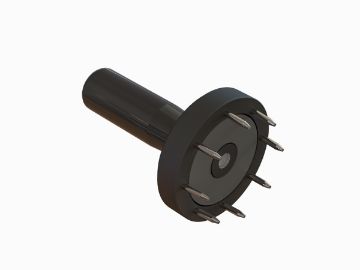

Quick Change Tool (suit BS132 Series)
