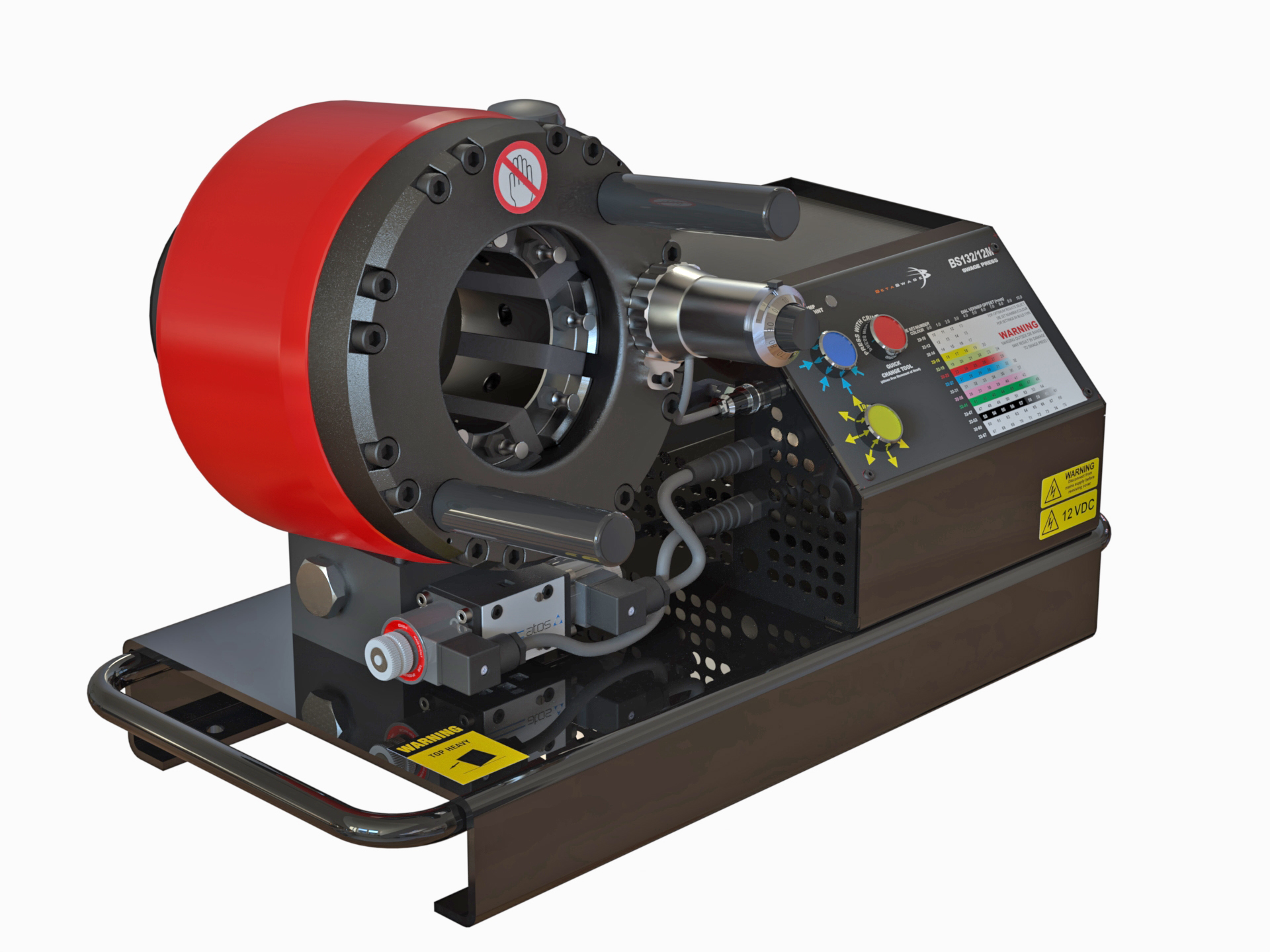

BS132/12M/SPORT - 1-1/4"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS132/12M/SPORT
  • 1-1/4" 4 wire hydraulic hose capability
  • 2" 2 wire hydraulic hose capability
  • Dies with colour coding pins
  • Large aperture
  • 12 VDC supply
  • Single button operation
  • Standard swaging range 16 to 55mm diam.
  • Extended swaging range 6 to 68mm diam.
$0.00 inc GST

The BS132/12M/SPORT uses pinned pies with finger pull die retain pins enabling change by hand.  Single button operation where exact installed diameter is achieved, halted then automatic rapid retract to fully open position. This machine offers you a simple product with a basic, reliable hydraulic system and no electrical switchgear.

The BS132/12M/SPORT uses pinned pies with finger pull die retain pins enabling change by hand.  Single button operation where exact installed diameter is achieved, halted then automatic rapid retract to fully open position. This machine offers you a simple product with a basic, reliable hydraulic system and no electrical switchgear.

Products specifications
Swaging Range (mm) with Standard Die Set 16 to 55
Extended Swaging Range (mm) with Optional Die(s) 6 to 68
Max. Die Set Opening (mm + Die Set Size) 25
Radial Swaging Force (kN) 1500
Cycle Speed (Full Stroke-Complete Cycle sec.) 22

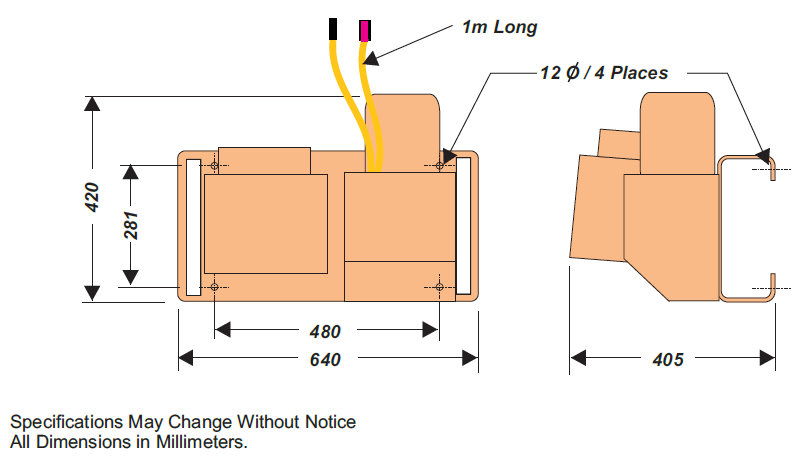

Dimensions (mm) 600x420x570 mm
Weight (kg without Dies & Oil) 68
Supply (Volts) 12 VDC
Supply (Amps) 250
Power (kW) 2.8
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 6
Reservoir Capacity (Litres) 5
Filtration (um) 100
Hose Diameter Capability 2"
Hose Wire Capability 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS32SDS

8 die sets supplied as a package to allow infinite swaging between 16 to 55mm finished swage size.

32-16

16 – 20

32-19

19 – 24

32-23

23 – 28

32-27

27 – 32

32-31

31 – 37

32-36

36 – 42

32-41

41 – 48

32-47

47 – 55
Product Files
Datasheets
Products specifications
Swaging Range (mm) with Standard Die Set 16 to 55
Extended Swaging Range (mm) with Optional Die(s) 6 to 68
Max. Die Set Opening (mm + Die Set Size) 25
Radial Swaging Force (kN) 1500
Cycle Speed (Full Stroke-Complete Cycle sec.) 22
Dimensions (mm) 600x420x570 mm
Weight (kg without Dies & Oil) 68
Supply (Volts) 12 VDC
Supply (Amps) 250
Power (kW) 2.8
Rated Pressure (bar) 300
Pump Flow Rate (L/min) 6
Reservoir Capacity (Litres) 5
Filtration (um) 100
Hose Diameter Capability 2"
Hose Wire Capability 4, 2, 1
