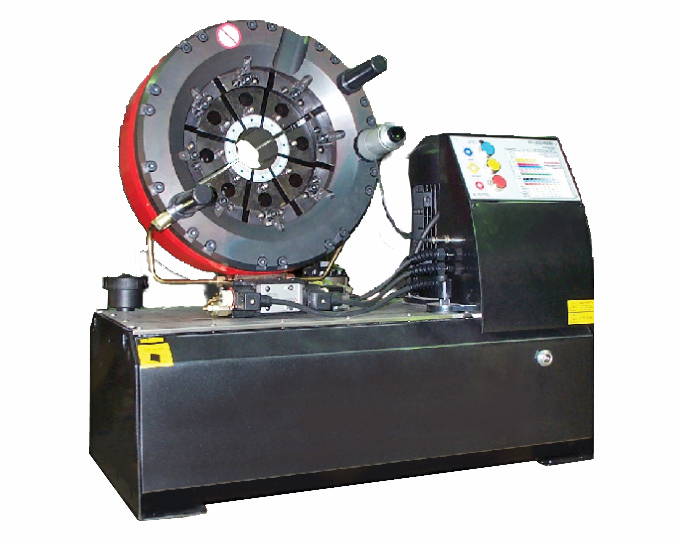

BS1200/400M - 6"

Picture for manufacturer Betaswage
Brand: Betaswage
SKU: BS1200/400M
  • 2" 2 wire hydraulic hose capability
  • 6" industrial hose capability
  • Large aperture
  • 400 VAC 3-phase supply
  • Automatic motor control
  • Standard swaging range 16 to 78mm diam.
  • Extended swaging range 6.5 to 186mm diam.
$0.00 inc GST

A precision 6" nom. swage press for the production of hose assemblies of all types.  Designed specifically for high production work with rapid operation in the fields of hydraulic, food and pharmaceutical hose assemblies.  The press has an extremely large opening to provide removal of couplings with large flanges.  The die sets used are those of a popular European “pin” design.

A precision 6" nom. swage press for the production of hose assemblies of all types.  Designed specifically for high production work with rapid operation in the fields of hydraulic, food and pharmaceutical hose assemblies.  The press has an extremely large opening to provide removal of couplings with large flanges.  The die sets used are those of a popular European “pin” design.

Products specifications

Swaging Range (mm) with Standard Die Set16 to 78
Extended Swaging Range (mm) with Optional Die(s)6.5 to 186
Max. Die Set Opening (mm + Die Set Size)70
Radial Swaging Force (kN)1700
Cycle Speed (Full Stroke-Complete Cycle sec.)15

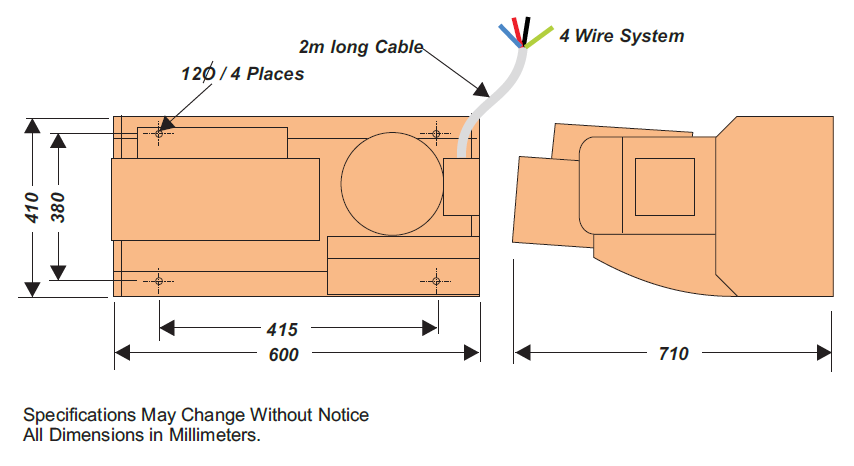

Dimensions (mm)600x420x710 mm
Weight (kg without Dies & Oil)200
Supply (Volts)400 VAC 3-Phase
Supply (Amps)8
Power (kW)3
Rated Pressure (bar)300
Pump Flow Rate (L/min)11.5
Reservoir Capacity (Litres)60
Filtration (um)10
Hose Diameter Capability6"
Hose Wire Capability2, 4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.

For this crimper, this die set must be used in conjunction with the SP200-50 Spacer Set.

50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78

Spacer Set SP200-50

SP200-50

The SP200-50 Spacer Set allows for the use of more economical Type 50 die sets for swaging diameters less than 90mm. For diameters greater than 90mm, the SP200-50 Spacer Set is removed and the Type 200 die sets are used.

Product Files
Datasheets

Products specifications

Swaging Range (mm) with Standard Die Set16 to 78
Extended Swaging Range (mm) with Optional Die(s)6.5 to 186
Max. Die Set Opening (mm + Die Set Size)70
Radial Swaging Force (kN)1700
Cycle Speed (Full Stroke-Complete Cycle sec.)15
Dimensions (mm)600x420x710 mm
Weight (kg without Dies & Oil)200
Supply (Volts)400 VAC 3-Phase
Supply (Amps)8
Power (kW)3
Rated Pressure (bar)300
Pump Flow Rate (L/min)11.5
Reservoir Capacity (Litres)60
Filtration (um)10
Hose Diameter Capability6"
Hose Wire Capability2, 4, 2, 1
