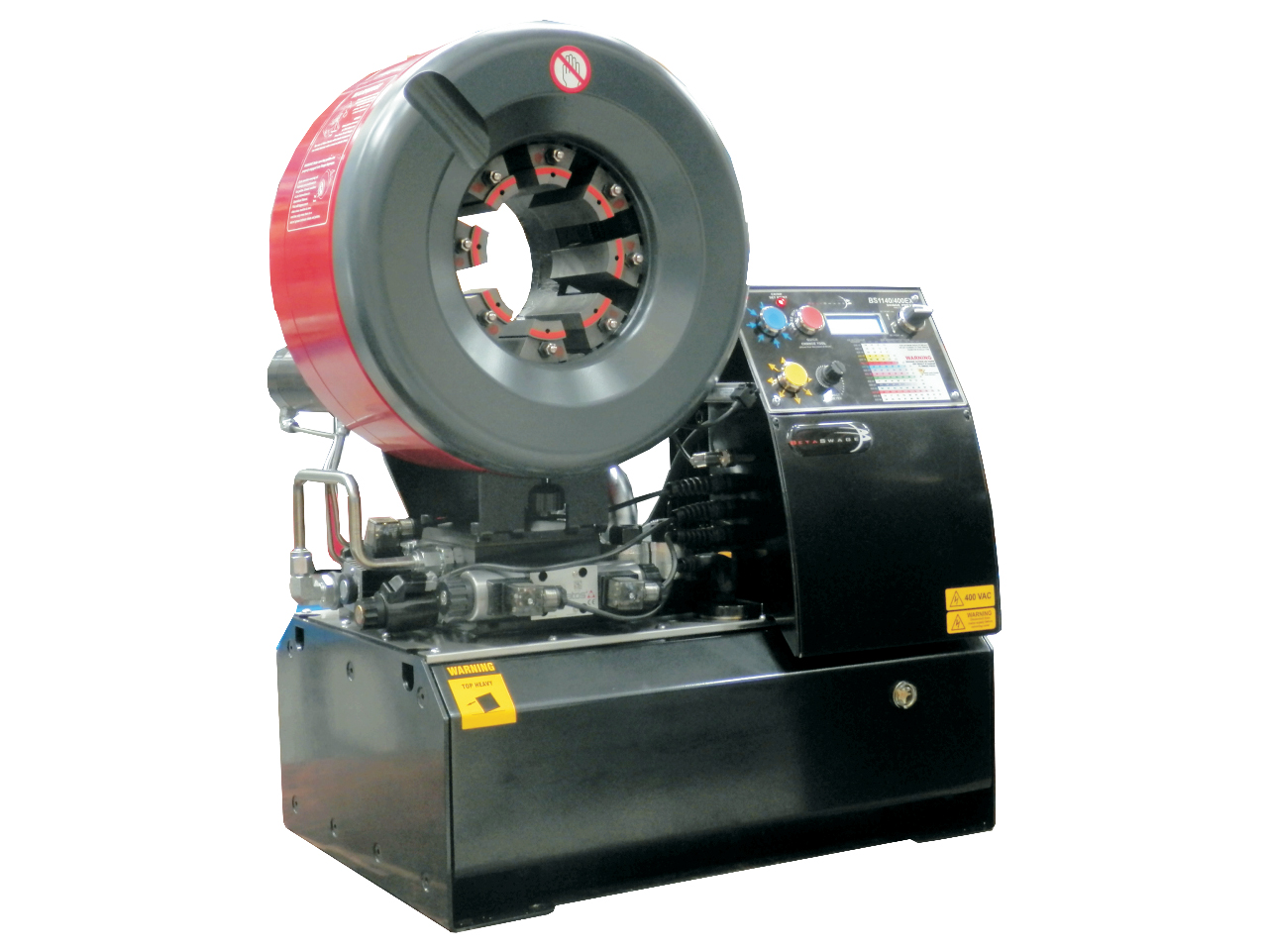

BS1140/400EX - 4"

BS50SDS

11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.

For this crimper this die set must be used in conjunction with the SP140-50 Spacer Set.

50-16

16 – 20

50-19

19 – 24

50-22

22 – 27

50-26

26 – 31

50-31

31 – 37

50-36

36 – 42

50-41

41 – 48

50-47

47 – 54

50-53

53 – 60

50-60

60 – 68

50-68

68 – 78

Spacer Set SP140-50

SP140-50

The SP140-50 Spacer Set allows for the use of more economical Type 50 die sets for swaging diameters less than 90mm. For diameters greater than 90mm, the SP140-50 Spacer Set is removed and the Type 140 die sets are used.
