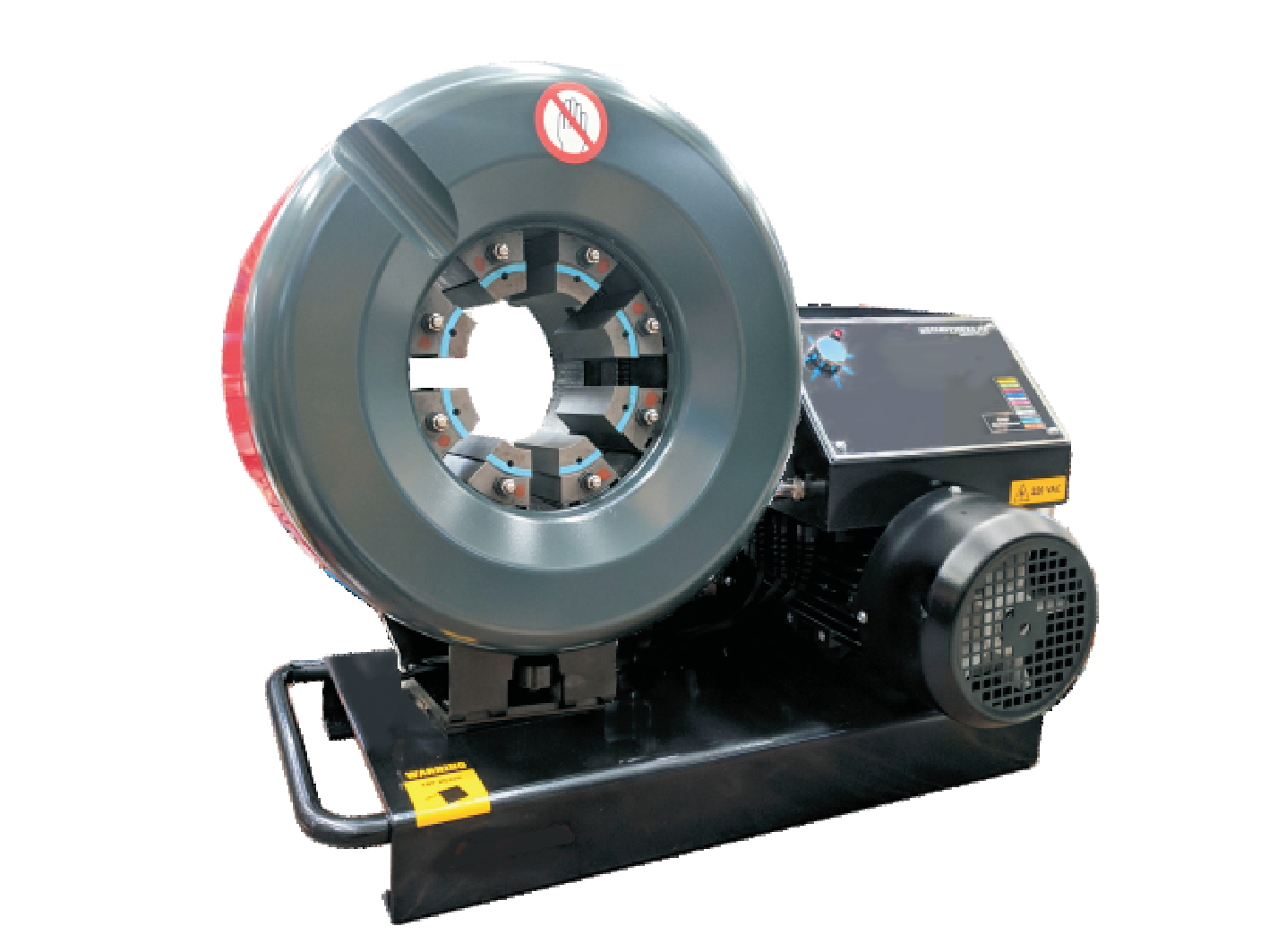

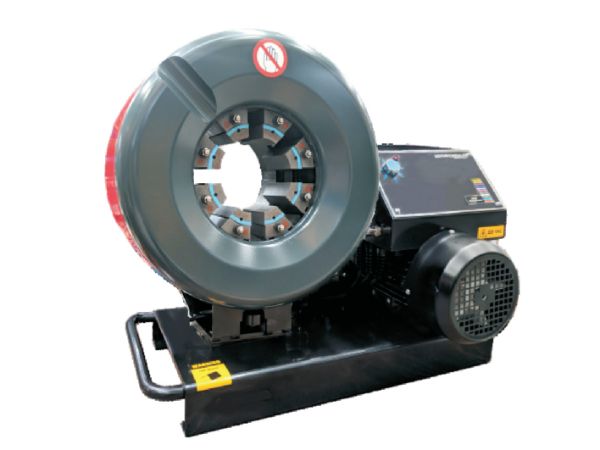

BS1140/220M/SPORT - 4"

Brand: Betaswage

SKU: BS1140/220M/SPORT

2" 6 wire hydraulic hose capability
4" 4 wire hydraulic hose capability
Shoe cluster auto Indexing - auto lubrication
220 VAC supply
Standard swaging range 16 to 78mm diam.
Extended swaging range 6.5 to 136mm diam.

$0.00 inc GST

A precision 4" nom. swage press for the production of hose assemblies of all types. Designed specifically for portability, with versatile single phase supply, soft start and twin pumps. Robust, simple design with performance in mind, without electrical switchgear, employing single button operation with rapid automatic full retract after completion of swage. Patented rotating/auto lube shoe cluster provides continuous >97% crimping efficiency with automatic self lubrication.

Overview
Specifications

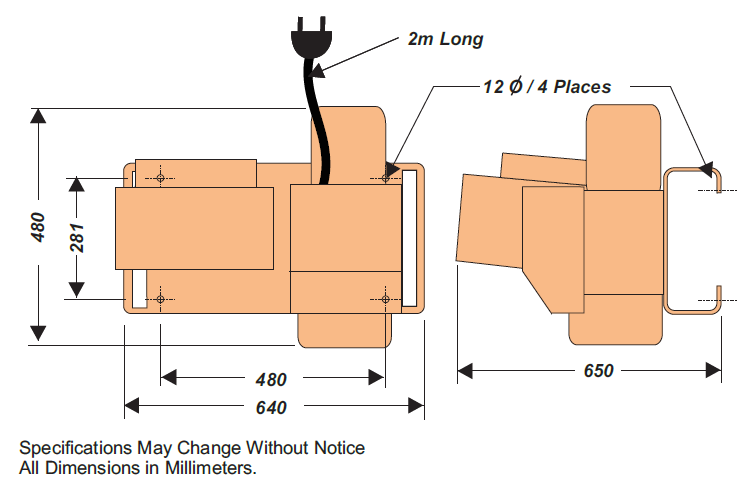

Dimensions
Standard Die Set

Products specifications

Swaging Range (mm) with Standard Die Set	16 to 78
Extended Swaging Range (mm) with Optional Die(s)	6.5 to 136
Max. Die Set Opening (mm + Die Set Size)	55
Radial Swaging Force (kN)	4100
Cycle Speed (Full Stroke-Complete Cycle sec.)	25
Dimensions (mm)	600x420x650 mm
Weight (kg without Dies & Oil)	190
Supply (Volts)	110 - 220 VAC
Supply (Amps)	30 - 15
Power (kW)	2.2
Rated Pressure (bar)	300
Pump Flow Rate (L/min)	4.6+4.6
Reservoir Capacity (Litres)	10
Filtration (um)	100
Hose Diameter Capability	4"
Hose Wire Capability	6, 4, 2, 1

Standard Die Set	Product Number	Range (mm)
BS50SDS 11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size. For this crimper this die set must be used in conjunction with the SP140-50 Spacer Set.	50-16	16 – 20
	50-19	19 – 24
	50-22	22 – 27
	50-26	26 – 31
	50-31	31 – 37
	50-36	36 – 42
	50-41	41 – 48
	50-47	47 – 54
	50-53	53 – 60
	50-60	60 – 68
	50-68	68 – 78
Spacer Set SP140-50	SP140-50	The SP140-50 Spacer Set allows for the use of more economical Type 50 die sets for swaging diameters less than 90mm. For diameters greater than 90mm, the SP140-50 Spacer Set is removed and the Type 140 die sets are used.
